Eclatés de véhicule - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

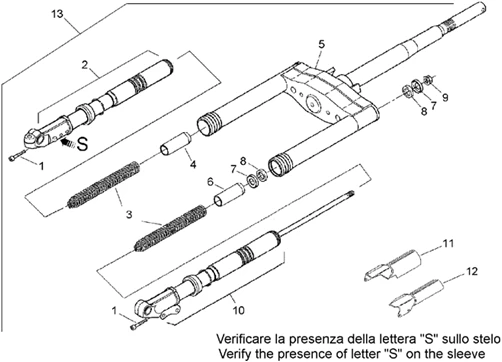

Chassis : 28.04 FOURCHE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.04.PNG)
1 |
Vis |
||||||
|
2 |
AP8203767 - TIGE+PORTE-ROUE D Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/5/7/6/img/55576.jpg)
3 |
AP8203768 - RESSORT PRINCIPAL Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
AP8203769 - PARE-CHOCS DTE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Base manchon-bague bleu |
||||||
|
5 |
AP8203801 - BASE MANCHON-BAGUE JAUNE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
Pare-chocs gche |
||||||
|
7 |
Rondelle; |
||||||
|
8 |
Caoutchouc; |
||||||
|
9 |
Ecrou bridé; |
||||||
|
10 |
AP8203775 - TIGE+PORTE-ROUE G Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
Cache-tige droite; |
||||||
|
11 |
Cache-tige droite; |
||||||
|
11 |
Cache-tige droite; |
||||||
|
12 |
Cache-tige gauche; |
||||||
|
12 |
Cache-tige gauche; |
||||||
|
12 |
Cache-tige gauche; |
||||||
|
13 |
AP8203751 - FOURCHE CPL-ANNEAU JAUNE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
Fourche cpl-anneau bleu |
Tous les éclatés de ce véhicule
-
