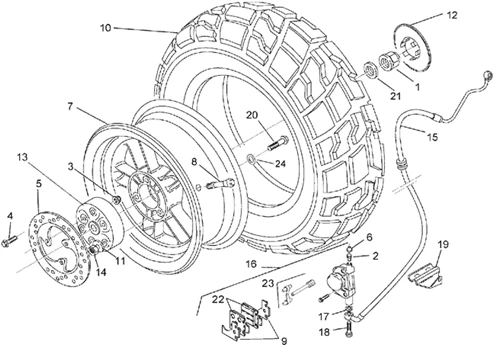

Chassis : 28.27 ROUE POSTERIEURE - F.D.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
1 |
ECROU BRIDE (14X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152244 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
2 |
VIS DE PURGE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER/MAXISCOOTER APRILIA -AP8113006- Plus d'informationsQuantité requise : 1 |
||||||
3 |
Ecrou |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
4 |
VIS BRIDE TH (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152289 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/0/3/img/56403.jpg)
5 |
DISQUE DE FREIN ORIGINE PIAGGIO 50 SCARABEO, RALLY, SR, GULLIVER, 125 LEONARDO, MOJITO -AP8213231 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
6 |
CAPUCHON RENIFLARD ETRIER DE FREIN OROGINE PIAGGIO COMMUN A LA GAMME 2008< -AP8113005 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
Roue arrière nue |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
8 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -AP8201546 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
Platine antisiff. AV-couple |
||||||
|
11 |
AP8225322 - RONDELLE Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
Bouchon roue arrière; |
||||||
|
13 |
Corps moyeu arrière |
||||||
|
14 |
AP8225319 - ECROU Plus d'informationsQuantité requise : 3 |
||||||
|
15 |
AP8213254 - TUYAU FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
Pince frein or |
||||||
|
16 |
Pince frein arrière rouge |
||||||
|
16 |
Pince frein AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
17 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
18 |
VIS TUYAU HUILE (10MM) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113003 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
AP8238852 - PLAQUE SUPPORT TUYAU FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
Vis |
||||||
|
21 |
AP8150471 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
AP8113663 - PLAQUETTES ARRIERE (LA PAIRE) Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
AP8213227 - GOUJON+RESSORT PINCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
24 |
RONDELLE PLATE (10,5X21X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150020 Plus d'informationsQuantité requise : 3 |
