Eclatés de véhicule - MOTO GUZZI S 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

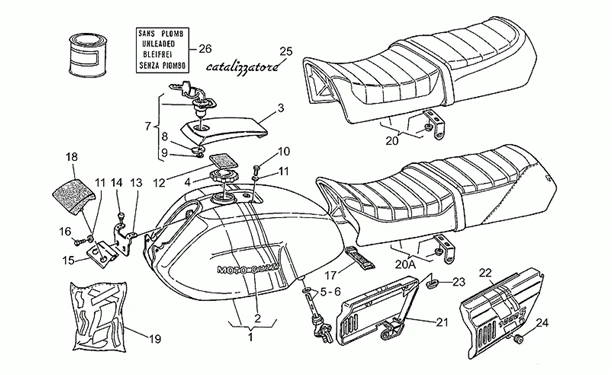

Chassis : 33.02 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.02.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
"Plaquette ""Moto Guzzi""" |
||||||
|
3 |
GU141040551 - COUVERCLE LAT CULASS Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
|
||||||
|
4 |
GU28103946 - BOUCHON RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Robinet ess.d. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/7/img/129317.jpg)
6 |
ROBINET ESSENCE GAUCHE ORIGINE PIAGGIO MOTO-GUZZI 850 T3, T5, 1000 CALIFORNIA, GT, LE-MANS, SP -GU17105461- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
|
||||||
|
8 |
GU18105001 - LOQUETEAU Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
GU19104950 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.jpg)
11 |
RONDELLE ELASTIQUE (5.3X10X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95129100 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU19104336 - CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU141022551 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
GU93180706 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
|
||||||
|
16 |
|
||||||
|
17 |
GU14102600 - ELASTIQUE DE FIXATION Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
COUVERCLE DE PROTEC |
||||||
|
19 |
|
||||||
|
19 |
|
||||||
|
20 |
|
||||||
|
21 |
GU144762701 - COUVERCLE BATTERIE Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
|
||||||
|
21 |
|
||||||
|
22 |
COUVERCLE BATTERIE |
||||||
|
22 |
|
||||||
|
22 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/9/img/131889.jpg)
23 |
CAOUTCHOUC ORIGNE MOTO GUZZI COMMUN A LA GAMME -GU39461600- Plus d'informationsQuantité requise : 4 |
||||||
|
24 |
GU91551082 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
|
25 |
GU14922071 - DECALCOMANIE D Plus d'informationsQuantité requise : 2 |
||||||
|
26 |
GU29995735 - DECALCOMANIE Plus d'informationsQuantité requise : 1 |
