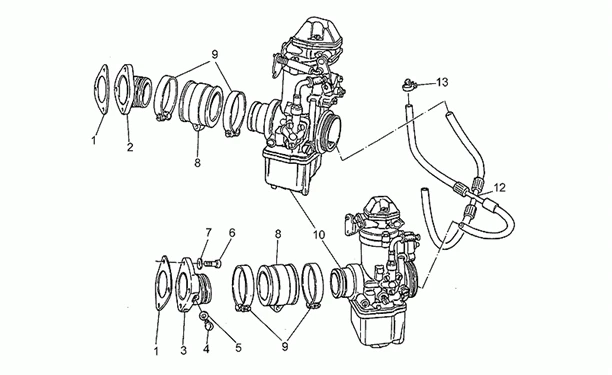

Chassis : 33.39 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/9/2/img/125592.jpg)
1 |
JOINT PIPE ADMISSION ORIGINE MOTO GUZZI 1000-1100 CALIFORNIA, LE MANS, SPORT, GT, SP 2005< -GU28115560- Plus d'informationsQuantité requise : 2 |
||||||
2 |
PIPE ADMISSION |
||||||
|
3 |
|
||||||
|
4 |
GU98326009 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
GU95100116 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
GU98622325 - VIS M6X25 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
7 |
RONDELLE PLATE (6,15X11X0,8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95008206- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/1/3/img/130113.jpg)
8 |
MANCHON DE CARBURATEUR ORIGINE PIAGGIO MOTO-GUZZI 1000 LE-MANS, 1100 SPORT -GU28114360 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/2/img/132612.jpg)
9 |
COLLIER (57X59,5X10) ORIGNE PIAGGIO COMMUN A LA GAMME -GU93305057 Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
|
||||||
|
12 |
Tuyau essence |
||||||
|
13 |
COLLIER |
