Eclatés de véhicule - APRILIA SCARABEO 2T 100 Mot Yamaha 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

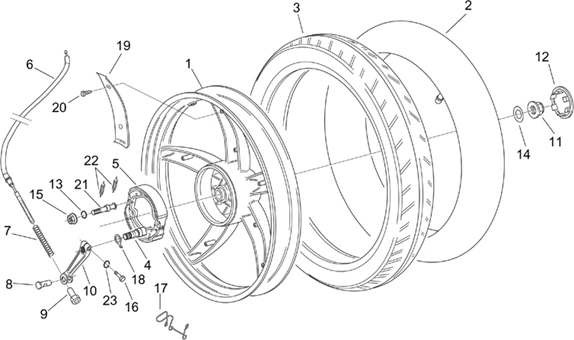

Chassis : 28.27 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/622/Scarabeo_100_2T_Mot_Yamaha_2000_28.27.PNG)
1 |
Roue arrière nue |
||||||
|
4 |
Came frein arrière |
||||||
|
5 |
AP8510601 - SABOTS A RESS-PAIRE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8114395 - CABLE FREIN ARRIERE * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/8/img/56388.jpg)
7 |
RESSORT DE TRANSMISSION FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8213137 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8221120 - AXE FIX. CABLE FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8214200 - REGLAGE LEVIER FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
Levier de frein AR; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
11 |
ECROU BRIDE (14X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152244 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8220367 - BOUCHON ROUE ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
Joint torique; |
||||||
|
14 |
AP8150471 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
Ecrou axe sabots; |
||||||
|
16 |
Vis |
||||||
|
17 |
Guide-câble |
||||||
|
18 |
Indicateur usure frein |
||||||
|
19 |
Couvre bras roue ar |
||||||
|
20 |
Vis |
||||||
|
21 |
AP8510661 - AXE SABOTS Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
AP8510738 - RESSORT POUR SABOTS Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
Rondelle; |
