Eclatés de véhicule - APRILIA SCARABEO 2T 100 Mot Yamaha 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

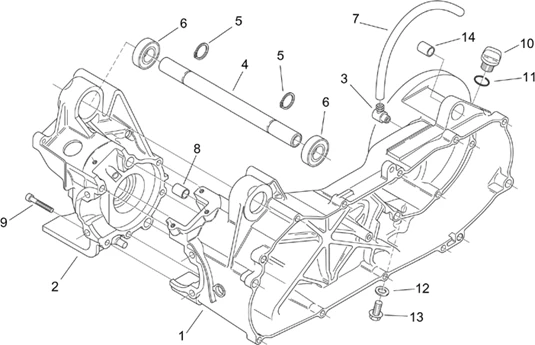

Moteur : 29.32 CARTERS CENTRAUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/622/Scarabeo_100_2T_Mot_Yamaha_2000_29.32.PNG)
1 |
Carter G; |
||||||
|
2 |
Carter D; |
||||||
|
3 |
Raccord reniflard; |
||||||
|
4 |
Entretoise; |
||||||
|
5 |
Bague seeger pour arbre; |
||||||
|
6 |
AP8206481 - ROULEMENT ETANCHE Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
Tuyau reniflard radiateur |
||||||
|
8 |
Goupille carter; |
||||||
|
9 |
Vis; |
||||||
|
10 |
AP8206475 - BOUCHON ALIMENTATION HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8206482 - JOINT TORIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
Joint vis; |
||||||
|
13 |
Vis vidange huile; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/8/1/img/55681.jpg)
14 |
SILENTBLOC CARTER MOTEUR ORIGINE PIAGGIO APRILIA 50 RALLY, SONIC, SR, GULLIVER, AMICO, SCARABEO -AP8206129- Plus d'informationsQuantité requise : 1 |
