Eclatés de véhicule - MOTO GUZZI SPORT 1100 Sport Carburatori 1100 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

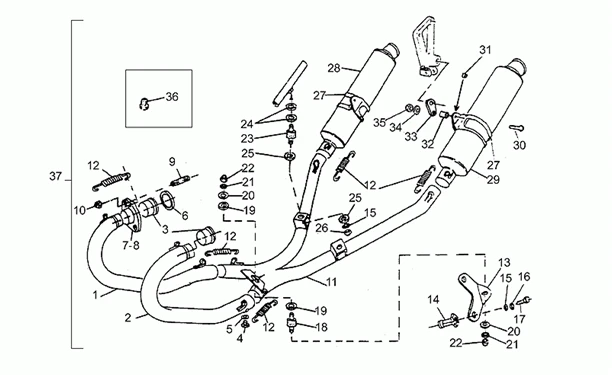

Chassis : 33.35 KIT POTENTIALISATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/517/Sport_Carburatori_1100_1994-1996_33.35.PNG)
1 |
GU30120940 - TUYAU ECHAPPEMENT D. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
|
||||||
|
3 |
DOUILLE |
||||||
|
4 |
GU98110007 - BOUCHON Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.jpg)
5 |
JOINT BOUCHON COUDE ECHAPPEMENT ORIGINE COMMUN A LA GAMME MOTO GUZZI -GU30109330 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
6 |
JOINT ECHAPPEMENT SORTIE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU90718370- Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
Bride droite |
||||||
|
8 |
Bride gauche |
||||||
|
9 |
GU96508038 - GOUJON Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
|
||||||
|
11 |
Collecteur échap.central |
||||||
|
12 |
GU30127240 - RESSORT Plus d'informationsQuantité requise : 6 |
||||||
|
13 |
GU30127141 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
GU30128840 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
GU95100141 - RONDELLE 6,5X20X2 Plus d'informationsQuantité requise : 4 |
||||||
|
16 |
Rondelle évent. |
||||||
|
17 |
GU98054318 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
GU93213020 - SUPPORT ELAST. Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
GU30126740 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
GU95100239 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
21 |
GU95021108 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
|
||||||
|
23 |
GU93212521 - SUPPORT ELAST. Plus d'informationsQuantité requise : 2 |
||||||
|
24 |
GU95100141 - RONDELLE 6,5X20X2 Plus d'informationsQuantité requise : 8 |
||||||
|
25 |
|
||||||
|
26 |
GU92660600 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
27 |
|
||||||
|
28 |
Silencieux D |
||||||
|
29 |
|
||||||
|
30 |
Vis |
||||||
|
31 |
GU37125410 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
32 |
GU37125510 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
33 |
GU37127110 - PLAQUE Plus d'informationsQuantité requise : 2 |
||||||
|
34 |
GU95004208 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
35 |
GU92630108 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
36 |
Jet maximum 165 |
||||||
|
37 |
Kit potentialisation |
