Eclatés de véhicule - MOTO GUZZI SPORT 1100 Sport Carburatori 1100 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

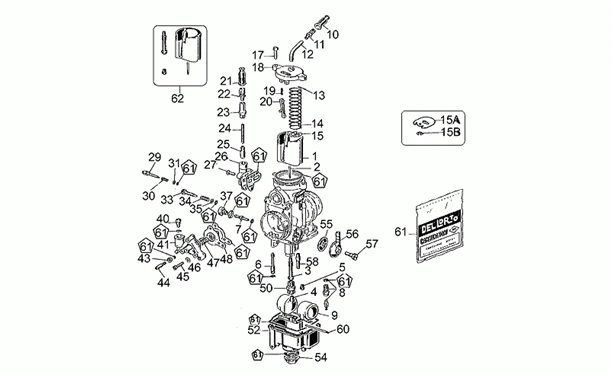

Moteur : 34.29 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/517/Sport_Carburatori_1100_1994-1996_34.29.PNG)
1 |
GU37937505 - SOUPAPE GAZ 60,5 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
Soupape gaz 50,3 |
||||||
|
2 |
GU17937767 - POINTEAU CONIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
Pointeau conique |
||||||
|
3 |
GU28935590 - GICLEUR 266 AB Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
Gicleur AB1 265 |
||||||
|
4 |
GU37935705 - JET MAXIMUM 152 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
|
||||||
|
5 |
GU13935900 - GICLEUR MINIMUM 45 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU37935920 - GICLEUR MINIMUM 52 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU19936000 - JET DEMARRAGE 60 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
GICLEUR DE POMPE |
||||||
|
8 |
Vanne pointeau 300 |
||||||
|
9 |
Flotteur |
||||||
|
10 |
|
||||||
|
14 |
Ressort |
||||||
|
17 |
GU14934650 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
RESSORT |
||||||
|
20 |
Levier |
||||||
|
21 |
GU13937000 - CAPUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
GU39937600 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
GU13937800 - SOUPAPE DE DEMARRAGE Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
Vis |
||||||
|
31 |
GU65933700 - RONDELLE PLATE Plus d'informationsQuantité requise : 1 |
||||||
|
33 |
Vis réglage soupape gaz |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
34 |
RESSORT VIS AIR CARBU ORIGINE PIAGGIO COMMUN A LA GAMME -152608- Plus d'informationsQuantité requise : 1 |
||||||
|
35 |
GU14931650 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
43 |
ECROU |
||||||
|
46 |
GU13932900 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/0/7/img/129307.jpg)
47 |
RESSORT DE CARBURATEUR MOTO GUZZI -GU14936950 Plus d'informationsQuantité requise : 1 |
||||||
|
48 |
GU14931050 - MEMBRANE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/0/9/img/131909.jpg)
55 |
GU43934000 - FILTRE ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
56 |
AP8106794 - PIPETTE RACC. TUYAU ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
57 |
|
||||||
|
58 |
SOUPAPE D AMMISSION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/8/img/129168.jpg)
60 |
AXE DE FLOTEUR ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU13933100 Plus d'informationsQuantité requise : 1 |
||||||
|
61 |
Jeu de joints |
||||||
|
62 |
Kit soupape gaz |
