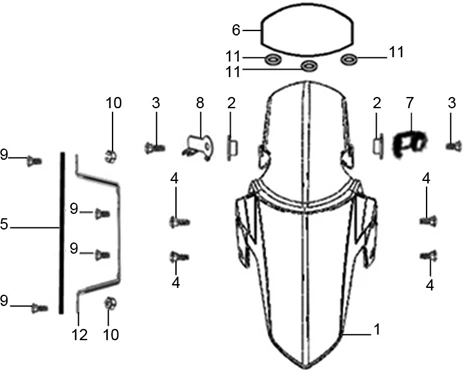

Cadre : 01.32 AILE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/582/STX_150_2014_01.32.PNG)
1 |
G-boue AV brut noir |
||||||
|
1 |
Garde-boue avant peint rouge |
||||||
|
1 |
Garde-boue avant peint rouge |
||||||
|
2 |
Bague |
||||||
|
3 |
BOULON (M6×22\Ø8.5×5.5) |
||||||
|
4 |
BOULON (M6×16\Ø8.5×5.5) |
||||||
|
5 |
Porte-plaque |
||||||
|
6 |
Garde-boue AV |
||||||
|
7 |
Passe-câble |
||||||
|
8 |
Passe-câble |
||||||
|
9 |
BOULON M6×12 |
||||||
|
10 |
Ecrou |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
11 |
PLAQUETTE ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -181351- Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
Bride |
