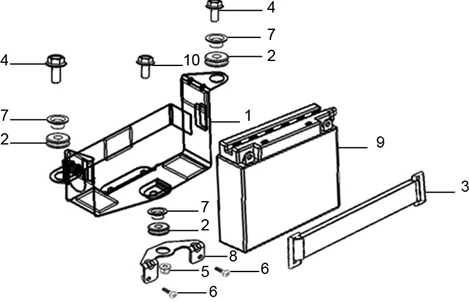

Cadre : 01.33 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/582/STX_150_2014_01.33.PNG)
Rechercher
1 |
Support batterie |
||||||
|
2 |
Circlips |
||||||
|
3 |
SOUS-ENS.BRIDE FIX.BATTERIE |
||||||
|
4 |
BOULON M6×20 |
||||||
|
5 |
Ecrou |
||||||
|
6 |
BOULON M5×12 |
||||||
|
7 |
Bague |
||||||
|
8 |
Bride |
||||||
|
9 |
2R000235 - BATTERIE 12N9-4B-1 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
Vis |
Tous les éclatés de ce véhicule
