Eclatés de véhicule - GILERA SURFER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

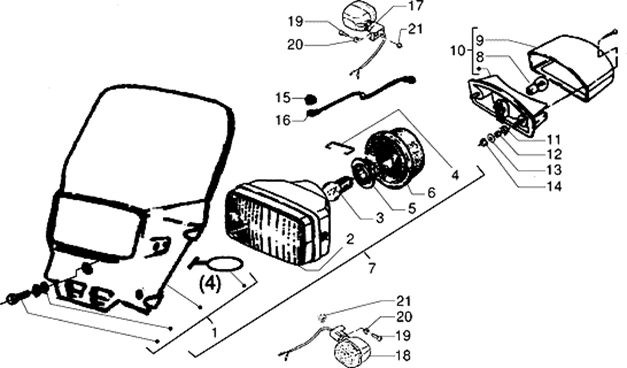

Connexions électriques : T35 FEUX ET CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/651/Surfer_1998-2005_T35.PNG)
1 |
FACE AV SURFER |
||||||
|
2 |
PHARE AV |
||||||
|
3 |
102111 - AMPOULE 12V 25/25W Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
RESSORT |
||||||
|
5 |
PORTE AMPOULE |
||||||
|
6 |
PROTECTION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
8 |
AMPOULE/LAMPE 12V 21/5W BAY15D / P21/5 ORIGINE PIAGGIO COMMUN A LA GAMME -129953- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
CABOCHON FEU ARR |
||||||
|
10 |
811552 - FEU ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/7/5/3/img/74753.jpg)
11 |
SILENTBLOC SUPPORT BOBINE ORIGINE PIAGGIO 125 VESPA PX -141590 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
ENTRETOISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
13 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
810511 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
CYLINDRE MP |
||||||
|
16 |
FAISCEAU PHARE |
||||||
|
17 |
CLIG GAUCHE RK |
||||||
|
18 |
812824 - CLIG DROIT RK Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
VIS |
||||||
|
20 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 4 |
||||||
|
21 |
810511 - ECROU Plus d'informationsQuantité requise : 1 |
