Eclatés de véhicule - GILERA SURFER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

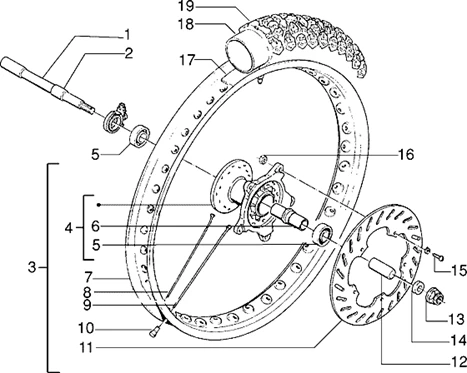

Suspensions-roues : T32 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/651/Surfer_1998-2005_T32.PNG)
1 |
AXE ROUE |
||||||
|
2 |
810544 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
814425 - ROUE AVT * Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
MOYEU AV COMPL |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/0/img/66110.jpg)
5 |
ROULEMENT (12X32X10) DE ROUE AVANT ORIGINE PIAGGIO 50 ZIP/GILERA 50 HAK, GSM, ZULU -272155 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
DEDOUBLEUR |
||||||
|
7 |
812155 - JANTE ROUE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
RAYON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/4/2/6/img/92426.jpg)
10 |
ECROU DE RAYON ORIGINE PIAGGIO 50 GSM, ZULU GILERA 2005< -814172 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
809471 - DISQUE DE FREIN AV Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
809514 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
ECROU |
||||||
|
14 |
RONDELLE |
||||||
|
15 |
VIS |
||||||
|
16 |
810511 - ECROU Plus d'informationsQuantité requise : 6 |
||||||
|
17 |
PROTECTION ROUE |
||||||
|
18 |
809493 - CHAMBRE AIR Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
811816 - PNEU 80/90-21 48P PIRELLI MT21 Plus d'informationsQuantité requise : 1 |
