Eclatés de véhicule - APRILIA TUAREG 660 E5+ 2024 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

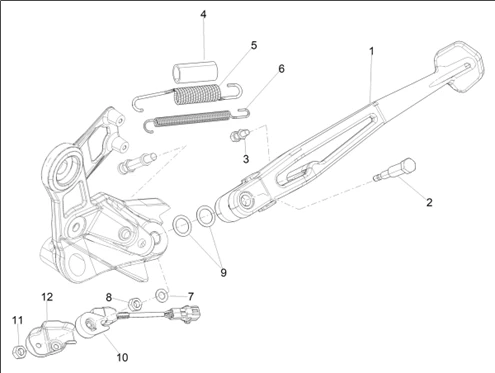

Châssis/coque : 01.03 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1299/Tuareg_660_E5_2024_(EMEA-GSO)_01.03.png)
1 |
2B014419 - BEQUILLE LATERALE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B014555 - AXE DE BEQUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2B014403 - PIVOT FIX. RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
4 |
PROTECTION RESSORT DE BEQUILLE LATERALE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102524- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
5 |
RESSORT EXTERNE RAPPEL BEQUILLE (GROS RESSORT) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221197 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
6 |
RESSORT INTERNE RAPPEL BEQUILLE (PETIT RESSORT) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221211- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
7 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/7/img/50827.jpg)
8 |
ECROU (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150027 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
893881 - RONDELLE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/0/0/img/171500.jpg)
10 |
CONTACTEUR DE BEQUILLE ORIGINE APRILIA 660 RS, TUONO, TUAREG 2020>-1100 RSV4, TUONO V4 2021>/MOTO GUZZI V85 E5 2021>-V100 2022> -2D000530 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8150269 - ÉCROU Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
2B014242 - STAND SENSOR COVER Plus d'informationsQuantité requise : 1 |
