Eclatés de véhicule - APRILIA TUAREG 660 E5+ 2024 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

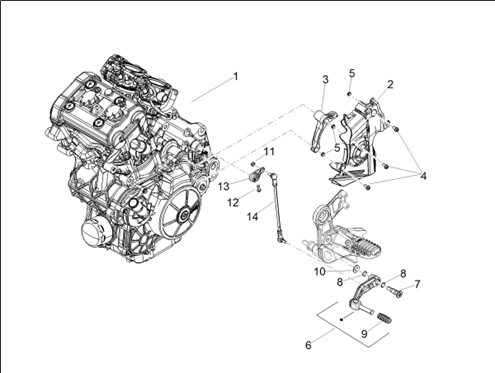

Moteur : 03.01 MOTEUR-GROUPE COMPLEMENTAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1299/Tuareg_660_E5_2024_(EMEA-GSO)_03.01.png)
1 |
CM2966245 - LIGHT EMEA E5 PLUS TUAREG 660 ENGINE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B007311 CARTER DE PIGNON Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2B005886 CRANKCASE PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
4 |
VIS BRIDE TH (6X12) ORIGINE PIAGGIO COMUUN A LA GAMME -AP8152277- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
5 |
DOUILLE EN T INTERIEUR 6 MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121811- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/4/7/7/8/img/184778.jpg)
6 |
SELECTEUR/LEVIER DE VITESSE ORIGINE APRILIA 660 TUAREG 2021> -2B009924- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/5/7/7/5/img/215775.jpg)
7 |
PIVOT/VIS DE PEDALE DE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -2B012762 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
8 |
JOINT TORIQUE (11,11X1,78) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8144007 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
9 |
CAOUTCHOUC LEVIER DE FREIN ARRIERE OU SELECTEUR ORIGINE PIAGGIO POUR MOTO-GUZZI/APRILIA -AP8120912 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
10 |
RONDELLE PLATE (10,5X21X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150020 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
11 |
ECROU AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150430- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
12 |
VIS BTR (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150044- Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
2B011146 - GEARSHIFT CONTROL LEVER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/4/7/8/0/img/184780.jpg)
14 |
TRINGLE COMMANDE DE VITESSE ORIGINE APRILIA 660 TUAREG 2021> -2B009321 Plus d'informationsQuantité requise : 2 |
