Eclatés de véhicule - APRILIA TUONO 660 Tuono 660 4T 8V E5 Factory ABS 2022-23 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

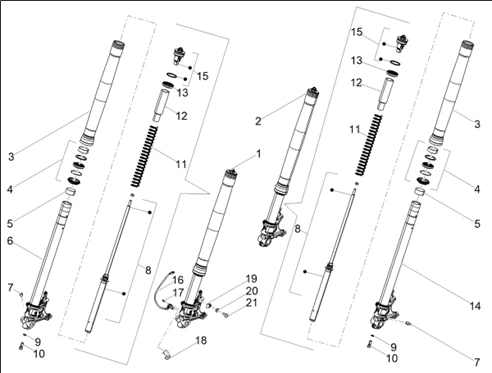

Suspensions : 04.04 FOURCHE AV. KAYABA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1192/Tuono_660_4T_8V_E5_Factory_ABS_2022-23_(EMEA)_04.04.png)
1 |
2B009332 - TIGE DROITE CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B009333 - TIGE GAUCHE CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2B008001 OUTER TUBE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/7/9/9/img/145799.jpg)
4 |
JEU DE JOINTS SPI FOURCHE ORIGINE PIAGGIO APRILIA 900 SHIVER 2017>, 660 RS, TUONO 2020> -2B004402- Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
2B004403 - DOUILLE DE COULISSEMENT Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
2B010480 - TIGE+PORTE-ROUE D Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
2B010481 - VIS DE RéGLAGE Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
2B010477 - ELéM.POMPAGE CPL Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/0/2/img/145802.jpg)
9 |
RONDELLE PLATE DE FOURCHE KAYABA ORIGINE PIAGGIO APRILIA 660 TUONO -2B004406 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
2B010478 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
2B007910 SPRING Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
2B004421 - TUYAU PRECHARGE Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
2B004422 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
2B010479 - TIGE+PORTE-ROUE G Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
2B007996 COMPLETE RH PLUG Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
16 |
CAPTEUR ABS ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY -1D003350 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
17 |
VIS BTR TETE BOMBEE (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152268 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
2B009302 - ABS SENSOR CABLE HOLDER Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
B046190 - PASSE-CABLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/2/img/71832.jpg)
20 |
RONDELLE PLATE (5.3X10X1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150177 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
21 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267- Plus d'informationsQuantité requise : 1 |
