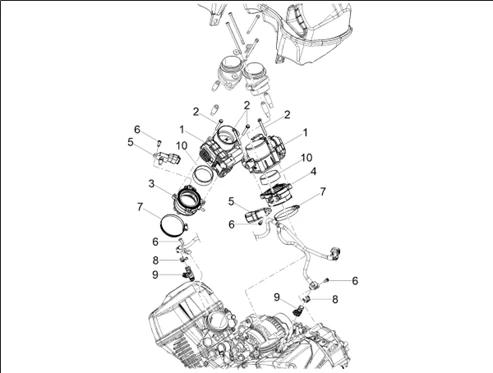

Moteur : 03.06 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1309/V100_Mandello_S_E5_ABS_2022-2024_(EMEA)_03.06.png)
1 |
1A023630 - THROTTLE BODY Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/2/img/72622.jpg)
2 |
VIS DE CARTER MOTEUR 6X50 ORIGINE PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -B013042- Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
1A023860 - RIGHT INTAKE FITTING Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
1A0239946 - RACCORD D'ADMISSION D. Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
1A023859 - LEFT INTAKE FITTING Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
1A0239936 - RACCORD D'ADMISSION G. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/5/img/99295.jpg)
5 |
CAPTEUR/SONDE DE TEMPERATURE AIR ORIGINE PIAGGIO 500-530 2021>/MOTO GUZZI V85, V100 2019> -887015 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
1A002954 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
1A021960 - CLAMP Ø 60-80 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/0/3/img/39103.jpg)
8 |
CLIPS DE RETENU INJECTEUR ORIGINE PIAGGIO COMMUN A LA GAMME -849898 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/2/6/img/174626.jpg)
9 |
INJECTEUR ORIGINE PIAGGIO 400-500-530 MP3 2021> /MOTO GUZZI V100 2023> -CM291203 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
1A023897 - INLET FITTING RING Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
1A023995 - INLET FITTING RING Plus d'informationsQuantité requise : 2 |
