Moteur : 03.15 CYLINDRE - PISTON

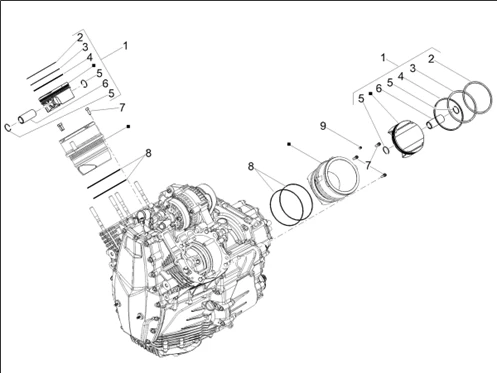

/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1309/V100_Mandello_S_E5_ABS_2022-2024_(EMEA)_03.15.png)
1 |
1A0235900D - PISTON COMPL.CAT.D Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
1A0235900C - PISTON COMPL.CAT.C Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
1A0235900E - COMPLETE PISTON Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A023586 - COMPRESSION RING Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
1A023587 - SCRAPER RING Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
1A023588 - SCRAPER RING Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
1A020986 - PIN STOP RING Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
1A021470 - PIN Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/7/img/66257.jpg)
7 |
VIS BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -2928896 Plus d'informationsQuantité requise : 6 |
||||||
|
8 |
1A024874 - JOINT TORIQUE Plus d'informationsQuantité requise : 4 |
||||||
|
9 |
1A022588 - CALIBRATED DOWEL Plus d'informationsQuantité requise : 1 |
