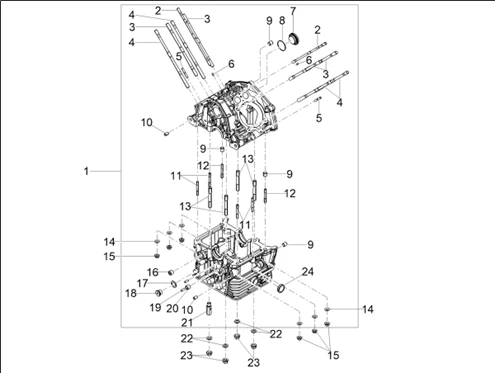

Moteur : 03.03 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_03.03.png)
1 |
1A0239045 - ENGINE BLOCK ASSEMBLY Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A008104 - PRISIONNIER CULASSE Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
1A008103 - PRISIONNIER CULASSE Plus d'informationsQuantité requise : 4 |
||||||
|
4 |
1A008102 - PRISIONNIER CULASSE Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
1A008256 - VIS SANS TETE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.jpg)
6 |
DOUILLE DE CENTRAGE (5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -484993 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
1A020286 - OIL PLUG Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
1A020362 - O RING GASKET 34 65X1 78 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
GU19015020 - BAGUE Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
GU19002020 - BAGUE 6,6X9X13 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
1A018712 ENGINE BLOCK FIXED STUD Plus d'informationsQuantité requise : 4 |
||||||
|
12 |
1A018733 ENGINE BLOCK FIXED STUD Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
1A004530 - GOUJON Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
1A018734 WASHER Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/6/img/70536.jpg)
15 |
874557 - ECROU BRIDE Plus d'informationsQuantité requise : 6 |
||||||
|
16 |
831135 BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/0/img/66180.jpg)
17 |
JOINT DE BOUCHON DE VIDANGE ORIGINE PIAGGIO 350 MP3, X10, BEVERLY/APRILIA 900 SHIVER, DORSODURO/MOTO-GUZZI V85/JOINT CANALISATION DE RADIATEUR TRIPORTEUR APE DIESEL -287174- Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
1A015068 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
GU19018920 - GOUPILLE Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
976168 - ASTUCCIO A RULLINI 10X14X12 Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
GU190038006 - RACCORD Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
1A006655 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
23 |
1A006656 - ECROU BRIDE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/8/img/66688.jpg)
24 |
JAUGE HUILE ORIGINE MOTO GUZZI V7, V9, V85 2021> -485693- Plus d'informationsQuantité requise : 1 |
