Eclatés de véhicule - MOTO GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

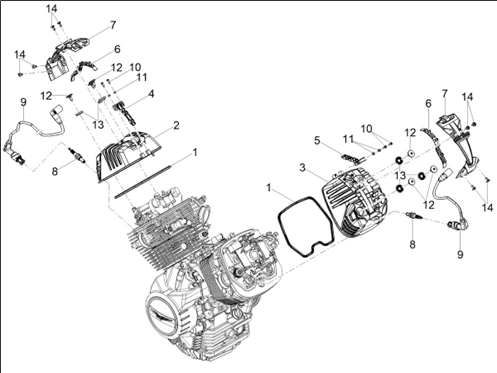

Moteur : 03.09 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_03.09.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/4/img/134494.jpg)
1 |
JOINT COUVERCLE DE CULASSE ORIGINE PIAGGIO MOTO-GUZZI V7 2017>,V9 2016>, V85 2019> -2A000565- Plus d'informationsQuantité requise : 2 |
||||||
2 |
1A024834 - RIGHT HEAD COVER Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
1A024833 - LEFT HEAD COVER Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
2B006084 - SUPPORTO Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
2B006083 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
1A013822 - PASSE-CABLE Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
1A024835 - SPARK PLUG COVER Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/6/8/img/149168.jpg)
8 |
BOUGIE IRIDIUM MR8BI-8 ORIGINE PIAGGIO 50 ZIP 4T 2018>, LIBERTY 4T 2017>, VESPA PRIMAVERA 4T 2018>, VESPA SPRINT 2018>/APRILIA 900 SHIVER, DORSODURO/MOTO-GUZZI V85 -1A010638 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/5/8/img/156958.jpg)
9 |
CABLE ALLUMAGE HAUTE TENTION ORIGINE PIAGGIO MOTO GUZZI V85TT 2019> -CM277103- Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
1A003444 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
2B003052 - DOUILLE EN T Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/8/img/99888.jpg)
12 |
VIS DE CACHE CULBUTEURS ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -976591- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/5/img/134495.jpg)
13 |
JOINT VIS DE COUVERCLE DE CULASSE ORIGINE PIAGGIO POUR MOTO-GUZZI 1400 CALIFORNIA 2012>, AUDACE, ELDORADO, 1200 SPORT, GRISO, NORGE, STELVIO, V7, V9, V85 -1A006716- Plus d'informationsQuantité requise : 6 |
||||||
|
14 |
1A023687 - BUTTON HEAD SCREW WITH FLANGE E.I. Plus d'informationsQuantité requise : 8 |
