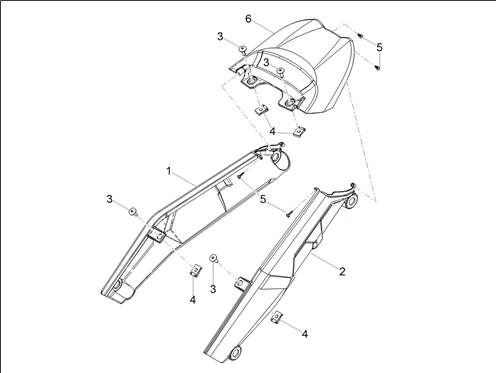

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1159/V85_TT_Travel_Pack_850_E5_ABS_2022_(EMEA)_02.14.png)
1 |
2B005352 - COUVERCLE Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
2B012456 - LH REAR COVER Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
2B012456 - LH REAR COVER Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
3 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
3 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -2B014101 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
5 |
VIS CRUCIFORME (3,5X11) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -296141- Plus d'informationsQuantité requise : 4 |
|||||||||
|
6 |
2B005354 - COUVERCLE Plus d'informationsQuantité requise : 1 |
|||||||||
