Eclatés de véhicule - MOTO GUZZI V85 850 TT Travel Pack 850 E5 ABS 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

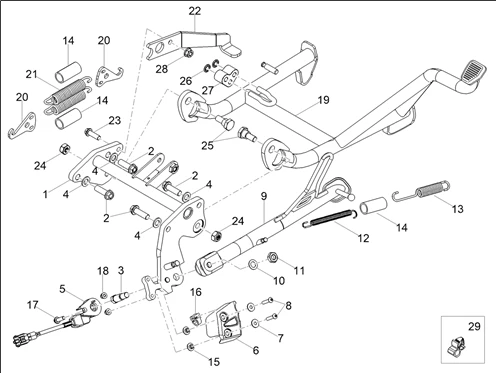

Châssis/coque : 01.03 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1159/V85_TT_Travel_Pack_850_E5_ABS_2022_(EMEA)_01.03.png)
1 |
2B007388 STANDS SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
B043046 HEX SOCKET BOLT M10X30 PRE Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
2B007560 SIDE STAND SCREW Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
4 |
RONDELLE PLATE (10,2X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95008210 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/0/0/img/171500.jpg)
5 |
CONTACTEUR DE BEQUILLE ORIGINE APRILIA 660 RS, TUONO, TUAREG 2020>-1100 RSV4, TUONO V4 2021>/MOTO GUZZI V85 E5 2021>-V100 2022> -2D000530 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/5/7/img/40657.jpg)
6 |
858941 - PROTECTION INTERRUPTEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
7 |
RONDELLE PLATE (5.5X15X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150248- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
8 |
VIS BTR TETE BOMBEE (5X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152270 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
2B007620 LATERAL STAND Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
10 |
RONDELLE ELASTIQUE (D10.4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150292 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
11 |
ECROU DE BEQUILLE LATERALE (10X1,25) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -AP8152001- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
12 |
RESSORT INTERNE RAPPEL BEQUILLE (PETIT RESSORT) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221211- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
13 |
RESSORT DE BEQUILLE CENTRALE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO -AP8221204 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
14 |
PROTECTION RESSORT DE BEQUILLE LATERALE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102524- Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
843213 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
16 |
GUIDE CABLE ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA / MOTO GUZZI -AP8201727 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
17 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
18 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP81523066 Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
BEQUILLE CENTRALE (MONTAGE DE SERIE) ORIGINE MOTO GUZZI V85 TT E5 2021> -2B005627 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
2B006171 - PLAQUE D'ACCROCHAGE DE RESSORT Plus d'informationsQuantité requise : 2 |
||||||
|
21 |
AP9100668 - MOLLA CAVALLETTO ESTERNA Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
2B005607 - PLAQUE FIN DE COURSE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
23 |
VIS BRIDE TH (8X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152287- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/0/0/img/51000.jpg)
24 |
ECROU DE VIS DE BEQUILLE (16X8.4X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152400 Plus d'informationsQuantité requise : 2 |
||||||
|
25 |
2B000652 - VIS SPECIALE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/1/img/73541.jpg)
26 |
RONDELLE POUR ARBRE D8 ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU90274008 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/4/img/73434.jpg)
27 |
SILENTBLOC ECHAPPEMENT ORIGINE PIAGGIO MOTO GUZZI 850-1200 NORGE, BREVA, 940 BELLAGIO, 1200 SPORT/APRILIA 1200 CAPONORD, 850 MANA -GU05124230 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
28 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152300- Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
2B004088 - SERRE-CABLES Plus d'informationsQuantité requise : 2 |
