Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

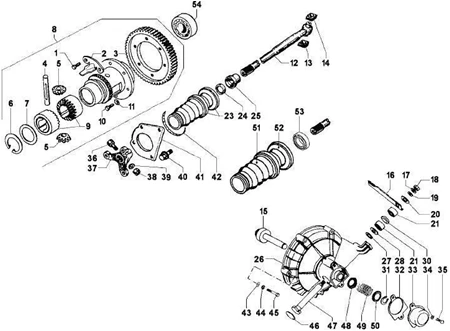

Moteur : 01.28 TRANSMISSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_01.28_20251008085929.PNG)
1 |
168065 - VIS More informationQuantity required : 2 |
||||||
|
2 |
829572 - SQUADRETTA More informationQuantity required : 1 |
||||||
|
3 |
COURONNE |
||||||
|
4 |
1680631 - PIVOT More informationQuantity required : 1 |
||||||
|
5 |
1326615 - SATELLITE More informationQuantity required : 2 |
||||||
|
7 |
132665 - More informationQuantity required : 1 |
||||||
|
8 |
L7951208 - SCATOLA DIFFER More informationQuantity required : 1 |
||||||
|
9 |
L4990191 - PIGNON SOLEIL More informationQuantity required : 1 |
||||||
|
11 |
VIS M10X18 |
||||||
|
12 |
L8050028 - DEMI-AXLE More informationQuantity required : 1 |
||||||
|
13 |
1680614 - ECROU CARDAN ATD More informationQuantity required : 2 |
||||||
|
15 |
2387246 - GRUPPO REGGISP More informationQuantity required : 1 |
||||||
|
16 |
L5271191 - LEVIER D'EMBRAYAGE More informationQuantity required : 1 |
||||||
|
20 |
L7352055 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
231290 - DOUILLE More informationQuantity required : 2 |
||||||
|
23 |
L2920196 - CAOUTCHOUC AXE More informationQuantity required : 1 |
||||||
|
24 |
431038 - BOURRAGE AXE ATD More informationQuantity required : 1 |
||||||
|
25 |
223725 - BAGUE ROULEMENT AXE ATD More informationQuantity required : 1 |
||||||
|
26 |
850580 - COUVERCLE FRICTION More informationQuantity required : 1 |
||||||
|
28 |
L7352056 - RONDELLE More informationQuantity required : 1 |
||||||
|
30 |
285591 - BAGUE ETANCHEITEE More informationQuantity required : 1 |
||||||
|
32 |
JOINT |
||||||
|
33 |
238736 - BOUCHON More informationQuantity required : 1 |
||||||
|
37 |
2681924 - ETOILE More informationQuantity required : 1 |
||||||
|
40 |
830784 - VIS More informationQuantity required : 3 |
||||||
|
41 |
829566 - BRIDE More informationQuantity required : 1 |
||||||
|
42 |
224344 - COLLIER More informationQuantity required : 1 |
||||||
|
46 |
238731 - BOUCHON More informationQuantity required : 1 |
||||||
|
47 |
L1015075 - ALBERINO More informationQuantity required : 1 |
||||||
|
48 |
CUVETTE ATD-T1 |
||||||
|
49 |
RESSORT |
||||||
|
50 |
238733 - SCODELLINO SUP More informationQuantity required : 1 |
||||||
|
51 |
CAOUTCHOUC AXE |
||||||
|
52 |
L2920189 - CAOUTCHOUC AXE More informationQuantity required : 1 |
||||||
|
53 |
L3010260 - CAGE A ROUL. More informationQuantity required : 1 |
