Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

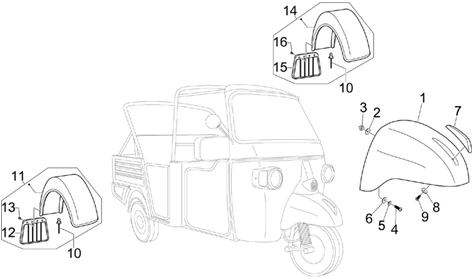

Parties plastiques-carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_02.33_20251008090245.PNG)
1 |
658496 - GARDE BOUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
2 |
013880 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
3 |
020106 - ECROU S02010600 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
4 |
031092 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
5 |
078307 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/6/img/66076.jpg)
6 |
269134 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/0/0/img/67400.jpg)
7 |
FRONT MUDGUARD CREST "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 50-125 VESPA-S -5996775 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
8 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
9 |
SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727 More informationQuantity required : 2 |
||||||
|
10 |
244474 - RIVET More informationQuantity required : 8 |
||||||
|
11 |
GARDE BOUE |
||||||
|
11 |
658511 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/0/img/113350.jpg)
12 |
142424 - BAVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/1/img/65741.jpg)
13 |
SADDLE HOLDING PIN "PIAGGIO GENUINE PART" 50 CIAO, APE -142425 More informationQuantity required : 4 |
||||||
|
14 |
658511 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
|
14 |
GARDE BOUE |
||||||
|
15 |
142424 - BAVETTE More informationQuantity required : 1 |
||||||
|
16 |
SADDLE HOLDING PIN "PIAGGIO GENUINE PART" 50 CIAO, APE -142425 More informationQuantity required : 4 |
