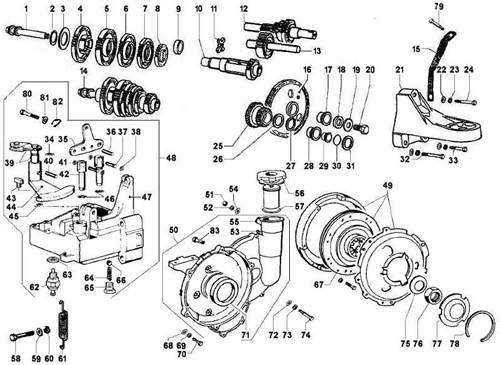

Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012

	P2R reference	134863
	Maker reference	L8570005

L8570005 - TUBE CHANGEMENT DE VITESSE

	P2R reference	111555
	Maker reference	829578

829578 - CIRCLIPS

	P2R reference	113379
	Maker reference	CM112901

CM112901 - RONDELLE

	P2R reference	112073
	Maker reference	CM112902

CM112902 - RONDELLE

	P2R reference	112062
	Maker reference	CM112903

CM112903 - RONDELLE

	P2R reference	111981
	Maker reference	CM112904

CM112904 - RONDELLE

	P2R reference	111909
	Maker reference	CM112905

CM112905 - RONDELLE

	P2R reference	113432
	Maker reference	CM112906

CM112906 - RONDELLE

	P2R reference	113896
	Maker reference	CM112907

CM112907 - RONDELLE

	P2R reference	142794
	Maker reference	CM112908

CM112908 - RONDELLE

	P2R reference	122006
	Maker reference	829576

829576 - ENGRENAGE

	P2R reference	121409
	Maker reference	L4990197

L4990197 - ENGRENAGE 1

	P2R reference	121282
	Maker reference	2243775

2243775 - ENGRENAGE

	P2R reference	120588
	Maker reference	L4990193

L4990193 - ENGRENAGE ATD-T1 3E VITESSE

	P2R reference	120294
	Maker reference	223081

223081 - ENGRENAGE

	P2R reference	114627
	Maker reference	829583

829583 - ENTRETOISE

	P2R reference	123186
	Maker reference	829584

829584 - AXE ENGRENAGE MULTITIPLE

	P2R reference	120757
	Maker reference	2394906

2394906 - CROCERA

	P2R reference	120884
	Maker reference	L4990196

L4990196 - INGR.MULT.PER

	P2R reference	121888
	Maker reference	829569

829569 - ARBRE

	P2R reference	123403
	Maker reference	829585

829585 - AXE ENGRENAGE MULTITIPLE

	P2R reference	115562
	Maker reference	292178

292178 - SANGLE DE MASSE

	P2R reference	121291
	Maker reference	L4950124

L4950124 - INGRANAGGIO

	P2R reference	116546
	Maker reference	L2524015

L2524015 - CONE

	P2R reference
	Maker reference	246014

RONDELLE

	P2R reference	65646
	Maker reference	0311195

031119 - BOULON

	P2R reference	63764
	Maker reference	0023835

002383 - RONDELLE

	P2R reference	117049
	Maker reference	826642

826642 - SUPPORT MOTEUR

	P2R reference	65418
	Maker reference	0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

	P2R reference	114035
	Maker reference	658842

658842 - ECROU

	P2R reference	65948
	Maker reference	224368

224368 - VIS

	P2R reference	122363
	Maker reference	4312385

4312385 - ENGRENAGE

	P2R reference
	Maker reference	L7701228

RONDELLE 1,25mm

	P2R reference	113753
	Maker reference	L7701231

L7701231 - RONDELLE

	P2R reference	113237
	Maker reference	L7701230

L7701230 - RONDELLE

	P2R reference
	Maker reference	L7701239

RONDELLE 1,45mm

	P2R reference	113241
	Maker reference	L7701240

L7701240 - RONDELLE

	P2R reference	113234
	Maker reference	L7701241

L7701241 - RONDELLE

	P2R reference	113913
	Maker reference	493826

493826 - RONDELLE

	P2R reference	113910
	Maker reference	493827

493827 - RONDELLE

	P2R reference	112132
	Maker reference	493828

493828 - RONDELLE

	P2R reference
	Maker reference	432009

RONDELLE

	P2R reference
	Maker reference	432013

RONDELLE

	P2R reference
	Maker reference	432017

RONDELLE

	P2R reference
	Maker reference	432018

RONDELLE

	P2R reference
	Maker reference	432019

RONDELLE

	P2R reference
	Maker reference	432020

RONDELLE

	P2R reference	118027
	Maker reference	431241

431241 - FILTRE

	P2R reference	119347
	Maker reference	431236

431236 - CIRCLIPS

	P2R reference	111025
	Maker reference	431155

431155 - O-RING

	P2R reference	117777
	Maker reference	431239

431239 - BOURRAGE ATD-T1

	P2R reference	113110
	Maker reference	850548

850548 - VIS

	P2R reference
	Maker reference	850530

VIS

	P2R reference	111207
	Maker reference	224202

O'RING GASKET (8.73X1.78) "PIAGGIO GENUINE PART" -224202

	P2R reference
	Maker reference	L5271192

LEVIER

	P2R reference	114299
	Maker reference	830734

830734 - PIVOT

	P2R reference
	Maker reference	2355834

PIVOT

	P2R reference	114558
	Maker reference	L6010098

L6010098 - DOIGT

	P2R reference	117321
	Maker reference	L8235068

L8235068 - CHANGEMENT DE VITESSE DU SECTEUR

	P2R reference	164286
	Maker reference	235661

235661 - BOURRAGE

	P2R reference	123639
	Maker reference	831249

831249 - BOITE

	P2R reference	123585
	Maker reference	L7860011

L7860011 - BOITE

	P2R reference	122884
	Maker reference	432141

432141 - EMBRAYAGE

	P2R reference	120835
	Maker reference	830744

830744 - CARTER

	P2R reference	113614
	Maker reference	830626

830626 - TUYAU

	P2R reference	116164
	Maker reference	L9032089

L9032089 - BOUCHON HUILE ATD

	P2R reference	113240
	Maker reference	L1200349

L1200349 - JOINT

	P2R reference	69321
	Maker reference	844483

844483 - VIS

	P2R reference	111635
	Maker reference	239077

239077 - RESSORT

	P2R reference	65999
	Maker reference	250324

250324 - INTERUPTEUR MARCHE ARRIERE ATD

	P2R reference
	Maker reference	L5801597

RESSORT

	P2R reference	114404
	Maker reference	L1860094

L1860094 - LOGEMENTE DE BILLE

	P2R reference	121144
	Maker reference	432295

432295 - DISQUE D'EMBRAYAGE ATD

	P2R reference	116888
	Maker reference	431240

431240 - BOURRAGE ATD-T1

	P2R reference	112728
	Maker reference	168207

168207 - RESSORT

	P2R reference	134768
	Maker reference	223803

223803 - ECROU

	P2R reference	117378
	Maker reference	245344

245344 - PIATTELLO

	P2R reference	113368
	Maker reference	245313

245313 - CIRCLIPS

	P2R reference	111808
	Maker reference	850576

850576 - VIS

	P2R reference	118494
	Maker reference	850577

850577 - PIVOT
