Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS LC 2002 DERBI
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

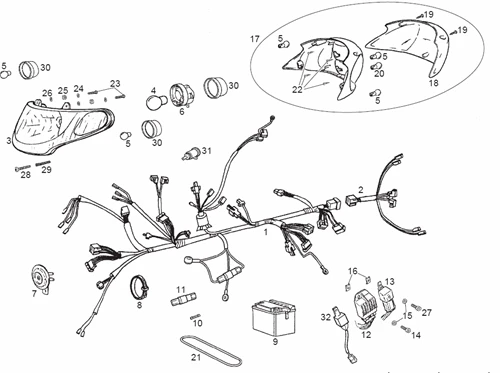

Circuit électrique : 7 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1129/ATLANTIS_LC_2002_DERBI_7.png)
1 |
00G01019301 - ENSEMB.INSTALLATION ELECTRIQUE More informationQuantity required : 1 |
||||||
|
2 |
00G05703051 - FAISCEAU PHARE TEMOIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/7/0/img/63970.jpg)
3 |
HEADLAMP "PIAGGIO GENUINE PART" 50 DIESIS -00G01018011- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
5 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/1/img/72331.jpg)
6 |
BULB HOLDER - FOR HEADLAMP "PIAGGIO GENUINE PART" APRILIA 50-125 MX 2004>, 50 MOJITO -AP8224609- More informationQuantity required : 1 |
||||||
|
7 |
00F01001311 - ZLAXON COMPLET More informationQuantity required : 1 |
||||||
|
8 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
9 |
234390 - BATTERIE 12V/4 AH YUASA YB4L-B More informationQuantity required : 1 |
||||||
|
10 |
00G01000911 - FUSIBLE 4 AH. More informationQuantity required : 1 |
||||||
|
11 |
00G02300811 - PORTE-FUSIBLE More informationQuantity required : 1 |
||||||
|
12 |
00G01001841 - REGULATEUR AC/DC. More informationQuantity required : 1 |
||||||
|
13 |
00G03900011 - ENS.RELAIS DEMARRAGE ELECT. More informationQuantity required : 1 |
||||||
|
14 |
VIS T.CREUSE 5M80X15 D912/8.8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
15 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
16 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/6/3/img/63963.jpg)
17 |
TAILLIGHT- "PIAGGIO GENUINE PART" 50 DIESIS -00G01008321- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/6/2/img/63962.jpg)
18 |
LENS FOR TAIL LAMP "PIAGGIO GENUINE PART" 50 DIESIS -00G01004341- More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/9/img/65799.jpg)
20 |
181747 - AMPOULE 12V 5W More informationQuantity required : 1 |
||||||
|
21 |
00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE More informationQuantity required : 1 |
||||||
|
22 |
00011031401 - VIS TARAUD 3,6X14 NOIR CL89H More informationQuantity required : 1 |
||||||
|
23 |
00011031801 - VIS TARAUD 3,6X18 NOIR CL89H More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
25 |
RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021- More informationQuantity required : 1 |
||||||
|
26 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
27 |
00000004512 - VIS A TETE CREUSE 5M80X12 NOIR More informationQuantity required : 1 |
||||||
|
28 |
00012044000 - VIS More informationQuantity required : 1 |
||||||
|
29 |
00G02302501 - R-RESSORT REGLAGE PHARE AVANT More informationQuantity required : 1 |
||||||
|
30 |
00G05701141 - R-PROTECTEUR PORTE-LAMPE PHARE More informationQuantity required : 1 |
||||||
|
31 |
00G05700641 - CONNECTEUR ALIMENTATION TELEPH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/7/img/64997.jpg)
32 |
DASHBOARD TIMER "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H05700481 More informationQuantity required : 1 |
