Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS LC 2002 DERBI
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

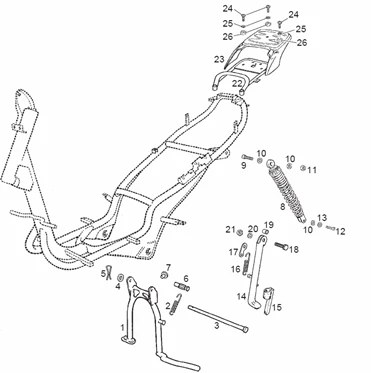

Suspensions - roues : 5 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1129/ATLANTIS_LC_2002_DERBI_5.png)
1 |
00G00802221A - SOUS-ENSEMB. BEQUILLE NOIR More informationQuantity required : 1 |
||||||
|
2 |
00G00800081 - RESSORT BEQUILLE More informationQuantity required : 1 |
||||||
|
3 |
00G00800071 - AXE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/8/img/63888.jpg)
4 |
00D02500271 - RONDELLE FIX.MOTEUR (125)D8,4X More informationQuantity required : 1 |
||||||
|
5 |
00000051205 - CHEVILLE OUVERTE 2X18.DIN-94 More informationQuantity required : 1 |
||||||
|
6 |
00G00800051 - BOULON SERRAGE RESSORT BEQUILL More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
00G01506191 - ENSEMBLE AMORTISSEUR More informationQuantity required : 1 |
||||||
|
9 |
00G01800901 - BOUL.SERRAGE SUPPORT AMORTISSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/7/img/63597.jpg)
10 |
00000031100 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
|
||||||
|
13 |
|
||||||
|
14 |
00G00806011 - SOUS-ENS.JAMBE BEQUILLE NOIR H More informationQuantity required : 1 |
||||||
|
15 |
00G00801061 - PROTECTEUR BUTEE CHEVALET More informationQuantity required : 1 |
||||||
|
16 |
00H00802081 - RESSORT DE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
17 |
STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468- More informationQuantity required : 1 |
||||||
|
18 |
00G00802071 - AXE DE BEQUILLE More informationQuantity required : 1 |
||||||
|
19 |
00H00801261 - DOUILLE ROT.JAMBE BEQUILLE SEN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/1/img/63731.jpg)
20 |
00034000802 - ZONDELLE EVENTAIL INT. D8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/7/img/63587.jpg)
21 |
00000021080 - ECROU INDESSERABLE More informationQuantity required : 1 |
||||||
|
22 |
00G01409191A - ENSAMBLE PORTE-PAQUET AR. More informationQuantity required : 1 |
||||||
|
23 |
00G01401242 - COUVERCLE SUP. PORTE-BAGAGES More informationQuantity required : 1 |
||||||
|
23 |
00G01401243 - COUVERCLE SUP. PORTE-BAGAGES More informationQuantity required : 1 |
||||||
|
23 |
00G01401244 - COUVERCLE SUP. PORTE-BAGAGES More informationQuantity required : 1 |
||||||
|
23 |
00G01401245 - COUVERCLE SUP. PORTE-BAGAGES More informationQuantity required : 1 |
||||||
|
23 |
00G01401246 - COUVERCLE SUP. PORTE-BAGAGES More informationQuantity required : 1 |
||||||
|
23 |
00G01401247 - COUVERCLE SUP. PORTE-BAGAGES More informationQuantity required : 1 |
||||||
|
23 |
00G01401248 - TAPA SUP.PORTAP.AMAR.JAZM.ATL More informationQuantity required : 1 |
||||||
|
24 |
00012151500 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
25 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
26 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
