Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS LC 2002 DERBI
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

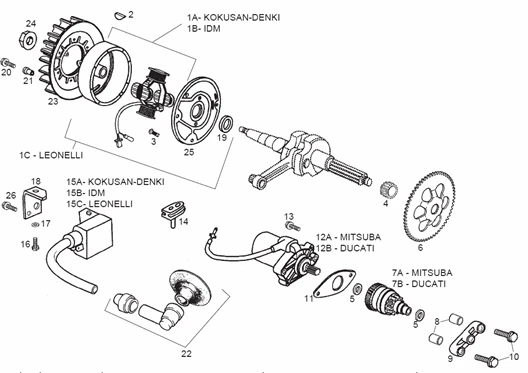

Moteur : 18 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1129/ATLANTIS_LC_2002_DERBI_18.png)
1 |
00G03301801 - ENSEMBLE VOLANT ELECTR.VAMOS-K More informationQuantity required : 1 |
||||||
|
2 |
00G03300231 - CLAVETTE VOLANT ELECTRONIQUE More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
4 |
00G03800181 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/5/img/63655.jpg)
5 |
SPACER- FOR REAR BRAKE COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00005527540- More informationQuantity required : 1 |
||||||
|
6 |
00G03901051 - RECHANGE-COURONNE DEMARRAGE More informationQuantity required : 1 |
||||||
|
7 |
00G03901851 - ENS.PIGNONS DEMARREUR EL More informationQuantity required : 1 |
||||||
|
7 |
00G03904851 - ENS.PIGNONS DEMARREUR EL.VAMOS More informationQuantity required : 1 |
||||||
|
8 |
00G03001021 - CENTREUR CARTERS More informationQuantity required : 1 |
||||||
|
9 |
00G03901871 - S-ENS.PLATINE APPUI DEMARREUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
10 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 1 |
||||||
|
11 |
00G03900501 - JOINT PLATINE APPUI MOTEUR More informationQuantity required : 1 |
||||||
|
12 |
00G03901891 - ENS.DEMARREUR ELECTR. More informationQuantity required : 1 |
||||||
|
12 |
00G03904891 - ENS.DEMARREUR ELECTR. VAMOS-K More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
13 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 1 |
||||||
|
14 |
00G03300281 - PASSE-CABLES VOLANT ELECT.VAM- More informationQuantity required : 1 |
||||||
|
15 |
00G03308171 - ENS.CONVERTISSEUR ELECTR.VAMOS More informationQuantity required : 1 |
||||||
|
16 |
00000004612 - VIS A TETE ALLEN 6M100X12. More informationQuantity required : 1 |
||||||
|
17 |
BOULON S03105900 |
||||||
|
18 |
00G04401241 - SUPPORT CONVERTIS.ELECTR. More informationQuantity required : 1 |
||||||
|
19 |
00G03300751 - JOINT VOLANT ELECT.BA.18,9X30X More informationQuantity required : 1 |
||||||
|
20 |
00G03600991 - BOULON SERRAGE TURBINE H.(6X16 More informationQuantity required : 1 |
||||||
|
21 |
00G03601871 - DOUILLE DE SERRAGE TURBINE More informationQuantity required : 1 |
||||||
|
22 |
00G03300831 - PIPE DE BOUGIE More informationQuantity required : 1 |
||||||
|
23 |
00G03601511 - ENSEMBLE TURBINE More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
|
25 |
00G03300021 - SUPPORT BOBINE More informationQuantity required : 1 |
||||||
|
26 |
|
