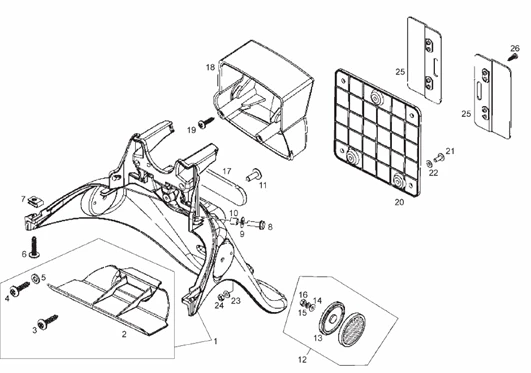

Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008-2012 (EMEA) DERBI

Châssis - parties plastiques - carrosseries : 25 SUPPORT PLAQUE
Support plaque
Search
MUDGUARD - REAR "PIAGGIO GENUINE PART" 50-125 FLY 2007>2011 -623503000C

1
P2R reference P2R reference 67741
Maker reference Maker reference 623503000C

MUDGUARD - REAR "PIAGGIO GENUINE PART" 50-125 FLY 2007>2011 -623503000C

More information

Quantity required : 1

622268 - ELEMENT INF

2
P2R reference P2R reference 67724
Maker reference Maker reference 622268

622268 - ELEMENT INF

More information

Quantity required : 1

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

3
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

4
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

More information

Quantity required : 1

013763 - PLAQUETTE S01376300

5
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

013763 - PLAQUETTE S01376300

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

6
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

More information

Quantity required : 1

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

7
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 1

B016777 - VIS

8
P2R reference P2R reference 72723
Maker reference Maker reference 434541

B016777 - VIS

More information

Quantity required : 1

B016777 - VIS

8
P2R reference P2R reference 72723
Maker reference Maker reference B016777

B016777 - VIS

More information

Quantity required : 1

013950 - RONDELLE S01395000

9
P2R reference P2R reference 65368
Maker reference Maker reference 0139505

013950 - RONDELLE S01395000

More information

Quantity required : 1

624085 - ENTRETOISE

10
P2R reference P2R reference 67752
Maker reference Maker reference 624085

624085 - ENTRETOISE

More information

Quantity required : 1

SCREW - (M6x16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836

11
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836

More information

Quantity required : 1

651538 - CATADIOPTRE

12
P2R reference P2R reference 68184
Maker reference Maker reference 651538

651538 - CATADIOPTRE

More information

Quantity required : 1

651538 - CATADIOPTRE

13
P2R reference P2R reference 68184
Maker reference Maker reference 651538

651538 - CATADIOPTRE

More information

Quantity required : 1

003056 - RONDELLE

14
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 1

016406 - RONDELLE S01640600

15
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

016406 - RONDELLE S01640600

More information

Quantity required : 1

020106 - ECROU S02010600

16
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

020106 - ECROU S02010600

More information

Quantity required : 1

REAR REFLECTOR "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO RANGE -58233R5

17
P2R reference P2R reference 67253
Maker reference Maker reference 58233R5

REAR REFLECTOR "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO RANGE -58233R5

More information

Quantity required : 1

576188 - ENTRETOISE

18
P2R reference P2R reference 67127
Maker reference Maker reference 576188

576188 - ENTRETOISE

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

19
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

More information

Quantity required : 1

LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584884-

20
P2R reference P2R reference 67322
Maker reference Maker reference 584884

LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584884-

More information

Quantity required : 1

268596 - VIS

21
P2R reference P2R reference 66074
Maker reference Maker reference 268596

268596 - VIS

More information

Quantity required : 1

WASHER (4,2x7,6x0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404

22
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404

More information

Quantity required : 1

013763 - PLAQUETTE S01376300

23
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

013763 - PLAQUETTE S01376300

More information

Quantity required : 1

020104 - ECROU S02010400

24
P2R reference P2R reference 65459
Maker reference Maker reference 0201045

020104 - ECROU S02010400

More information

Quantity required : 1

NUMBER PLATE EXTENSION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584877-

25
P2R reference P2R reference 67321
Maker reference Maker reference 584877

NUMBER PLATE EXTENSION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584877-

More information

Quantity required : 1

268596 - VIS

26
P2R reference P2R reference 66074
Maker reference Maker reference 268596

268596 - VIS

More information

Quantity required : 1
