Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008-2012 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

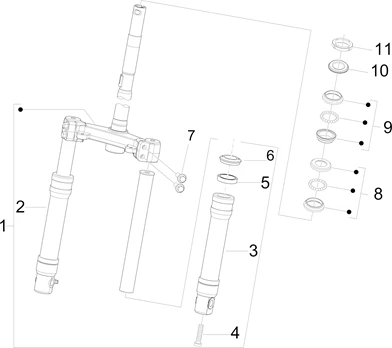

Suspensions - roues : 4 FOURCHE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1138/Boulevard_125_4T_E3_2008-2012_(EMEA)_4.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/6/img/68106.jpg)
1 |
FRONT FORK "PIAGGIO GENUINE PART" PIAGGIO 50-125 FLY 2005>2011 -649921- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/4/8/img/68148.jpg)
2 |
FORK LEG - RIGHT "PIAGGIO GENUINE PART" 50-125 FLY 2006>2011 -650431 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/4/7/img/68147.jpg)
3 |
FORK LEG - LEFT "PIAGGIO GENUINE PART" 50-125 FLY 2006>2011 -650430 More informationQuantity required : 1 |
||||||
4 |
650433 - TORNILLO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/1/1/img/68111.jpg)
5 |
FORK OIL SEAL (32X44X10.5) "PIAGGIO GENUINE PART" 50-125 FLY, 125 LIBERTY/APRILIA 125 SR 2011, 50-125 SPORT-CITY ONE -649952- More informationQuantity required : 2 |
||||||
|
6 |
649951 - PARE POUSSIERE More informationQuantity required : 2 |
||||||
|
7 |
650432 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/1/8/img/87018.jpg)
8 |
STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/1/img/68161.jpg)
9 |
UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/3/img/63783.jpg)
10 |
STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
11 |
NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094- More informationQuantity required : 1 |
