Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008-2012 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

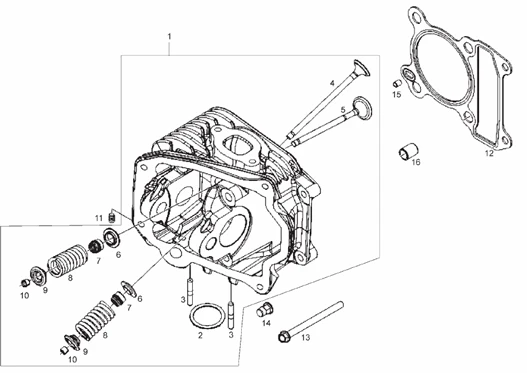

Moteur : 31 CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1138/Boulevard_125_4T_E3_2008-2012_(EMEA)_31.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/4/img/68694.jpg)
1 |
CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 125 FLY, VESPA LX, X8 STREET, LIBERTY -82777R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/8/img/66458.jpg)
2 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC REFROIDISSEMENT PAR AIR -434716 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/8/img/66478.jpg)
3 |
EXHAUST STUD BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -435629- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/1/img/65981.jpg)
3 |
EXHAUST STUD BOLT M6 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -239397- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/7/img/66637.jpg)
4 |
INLET VALVE "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8-STREET, VESPA LX, VESPA-S/APRILIA 125 MOJITO, SPORT-CITY -483706 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/8/img/66638.jpg)
5 |
EXHAUST VALVE "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8-STREET, VESPA LX, VESPA-S/APRILIA 125 MOJITO, SPORT-CITY -483707- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/9/img/66639.jpg)
6 |
483711 - RONDELLE D'AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
7 |
VALVE GASKET RING "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -436438 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/0/img/66650.jpg)
8 |
VALVE SPRING "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX, X8 -483915- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/9/img/66649.jpg)
9 |
483914 - RONDELLE D'AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
10 |
VALVE HALF CONE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER + MAXISCOOTER -285846 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
11 |
842360 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/9/img/68619.jpg)
12 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" 125 FLY, VESPA LX, X8 STREET, LIBERTY -82681R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/2/img/66682.jpg)
13 |
485603 - BOULON More informationQuantity required : 1 |
||||||
14 |
844719 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
15 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 1 |
||||||
|
16 |
|
