Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

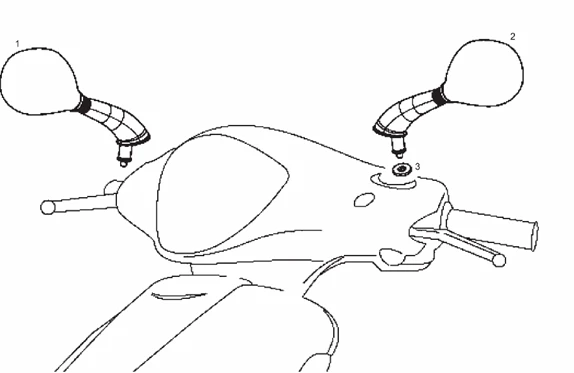

Châssis - parties plastiques - carrosseries : 10 MIROIR RÉTROVISEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1137/Boulevard_125_4T_E3_2008_(EMEA)_10.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/5/5/img/72955.jpg)
1 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" 50-125 FLY 2006>2011 BLACK -CM027005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/5/4/img/72954.jpg)
2 |
MIRROR- LEFT "PIAGGIO GENUINE PART" 50-125 FLY 2006>2011 BLACK -CM027004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/9/img/65369.jpg)
3 |
013958 - RONDELLE S01395800 More informationQuantity required : 1 |
