Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

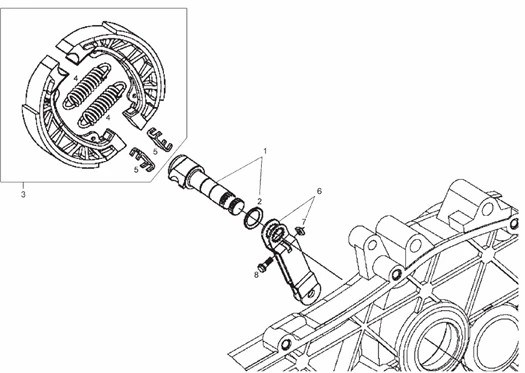

Suspensions - roues : 49 FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1137/Boulevard_125_4T_E3_2008_(EMEA)_49.png)
1 |
B0164755 - COMPLETE BRAKE LEVER AXLE More informationQuantity required : 1 |
||||||
|
2 |
564134 - O-RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/4/img/67024.jpg)
3 |
REAR SHOE BRAKE "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8 STREET, VESPA PRIMAVERA, VESPA SPRINT/APRILIA 125 MOJITO, SPORT-CITY (JEU) -56294R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/7/img/68017.jpg)
4 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" COMMON FOR RANGE SCOOTER 50-125 -647384- More informationQuantity required : 1 |
||||||
|
5 |
266724 - PLAQUE More informationQuantity required : 1 |
||||||
|
6 |
564215 - LEVIER DU FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/1/img/68791.jpg)
7 |
828862 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
8 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
