Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

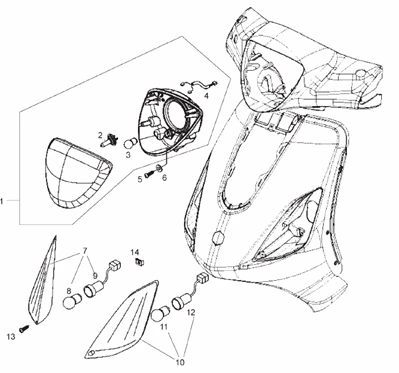

Châssis - parties plastiques - carrosseries : 15 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1137/Boulevard_125_4T_E3_2008_(EMEA)_15.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/1/img/67231.jpg)
1 |
HEADLAMP "PIAGGIO GENUINE PART" 50-125 FLY 2006>2012, 50-125 LIBERTY 2006>2012 -58178R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
2 |
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/2/img/67792.jpg)
4 |
BULB HOLDER + WIRING "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, VESPA LX, 125-250-300 VESPA GTS, 250-300-400-500 BEVERLY -638563 More informationQuantity required : 1 |
||||||
5 |
834065 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
6 |
006965 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/4/img/67794.jpg)
7 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" 50-125 FLY 2006> -638577 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
8 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/9/img/67809.jpg)
9 |
BULB HOLDER - FOR FLASHER "PIAGGIO GENUINE PART" 50-125 FLY -638784- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/0/img/67800.jpg)
10 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" 50-125 FLY 2006> -638655- More informationQuantity required : 1 |
||||||
|
11 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 1 |
||||||
|
12 |
BULB HOLDER - FOR FLASHER "PIAGGIO GENUINE PART" 50-125 FLY -638784- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/0/img/63850.jpg)
13 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
14 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403- More informationQuantity required : 1 |
