Vehicle Exploded View - DERBI BOULEVARD 150 Boulevard 150 4T E3 2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

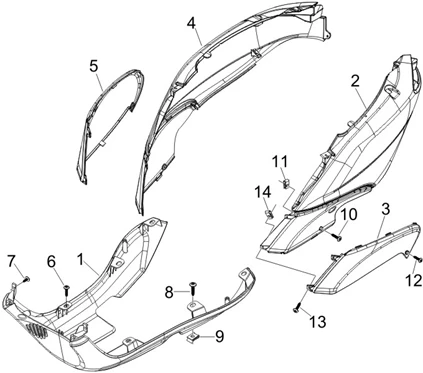

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1139/Boulevard_150_4T_E3_2010_(EMEA)_02.32.png)
1 |
621984000C - SPOILER PIGMENT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/8/6/img/67686.jpg)
1 |
SPOILER "PIAGGIO GENUINE PART" 50-125 FLY 2005>2011 -6219840043 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/9/3/img/67693.jpg)
2 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 GREY 738/A -62198600F2- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/9/0/img/67690.jpg)
2 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 WHITE 724 -6219860087 More informationQuantity required : 1 |
|||||||||
|
2 |
6219860090 - FLANC ARR.GAU. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/8/9/img/67689.jpg)
2 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 RAW TO BE PAINTED -621986 More informationQuantity required : 1 |
|||||||||
|
3 |
LOWER SIDE PANEL - LEFT - "PIAGGIO GENUINE PART" 50-125 FLY 2010> -621990000C- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/9/7/img/67697.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 WHITE 724 -6219870087 - More informationQuantity required : 1 |
|||||||||
|
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 BLACK 94 -6219870090- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/0/0/img/67700.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 GREY 738/A -62198700F2- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/9/6/img/67696.jpg)
4 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 RAW TO BE PAINTED -621987 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/0/9/img/67709.jpg)
5 |
LOWER SIDE PANEL - RIGHT- "PIAGGIO GENUINE PART" 50-125 FLY 2010> -621991000C- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
8 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
10 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
11 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
|||||||||
|
12 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
13 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 4 |
|||||||||
|
14 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 6 |
|||||||||
