Vehicle Exploded View - DERBI BOULEVARD 150 Boulevard 150 4T E3 2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

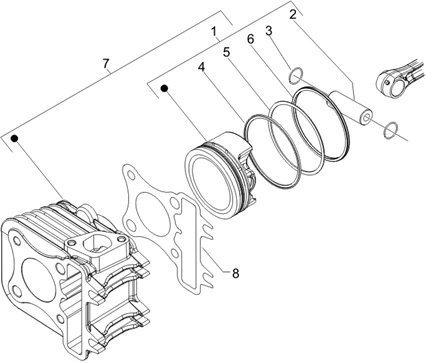

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1139/Boulevard_150_4T_E3_2010_(EMEA)_01.07.png)
1 |
8270280004 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
|
1 |
8270280001 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
|
1 |
8270280002 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
|
1 |
8270280003 - ENS PIST.-AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/5/img/66615.jpg)
2 |
PISTON PIN "PIAGGIO GENUINE PART" 125 MP3 2006>2013, X10 2012>2015/ VESPA GTS 2007>2016, VESPA LX 2006>2011 -482335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/2/img/70922.jpg)
3 |
STOP RING FOR PISTON "PIAGGIO GENUINE PART"- LEADER ENGINE 125-250 -963486- More informationQuantity required : 2 |
||||||
|
4 |
1A009621R - JEU BAGUE TENUE PISTON More informationQuantity required : 1 |
||||||
|
5 |
1A009621R - JEU BAGUE TENUE PISTON More informationQuantity required : 1 |
||||||
|
6 |
1A009621R - JEU BAGUE TENUE PISTON More informationQuantity required : 1 |
||||||
|
7 |
827041 - GR.CIL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
8 |
CYLINDER BASE GASKET (0,04MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
8 |
CYLINDER BASE GASKET (0,06MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875113- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
8 |
CYLINDER BASE GASKET(0,08MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875114- More informationQuantity required : 1 |
||||||
|
8 |
CYLINDER BASE GASKET (0,04MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875112 More informationQuantity required : 1 |
