Vehicle Exploded View - DERBI BOULEVARD 150 Boulevard 150 4T E3 2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

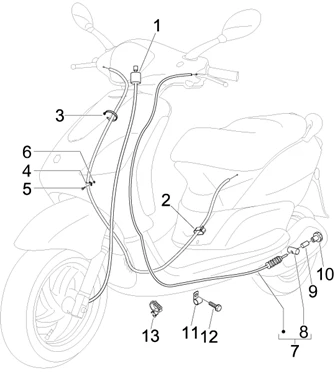

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1139/Boulevard_150_4T_E3_2010_(EMEA)_05.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/2/9/img/67429.jpg)
1 |
CABLE KIT FOR SPEEDOMETER "PIAGGIO GENUINE PART" 50-125 FLY 2005> -600315- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
2 |
231590 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
3 |
257134 - COLLIER More informationQuantity required : 2 |
||||||
4 |
649658 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
5 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
5 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
6 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/5/0/9/img/67509.jpg)
7 |
REAR BRAKE CABLE KIT "PIAGGIO GENUINE PART" 50-125 FLY 2005> -601736- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/1/img/66051.jpg)
8 |
BUSH FOR BRAKE CABLE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+ MAXISCOOTER -266040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
9 |
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
10 |
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/2/img/67072.jpg)
11 |
564645 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
12 |
709674 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
13 |
298729 - COLLIER More informationQuantity required : 1 |
