Vehicle Exploded View - GILERA DNA 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

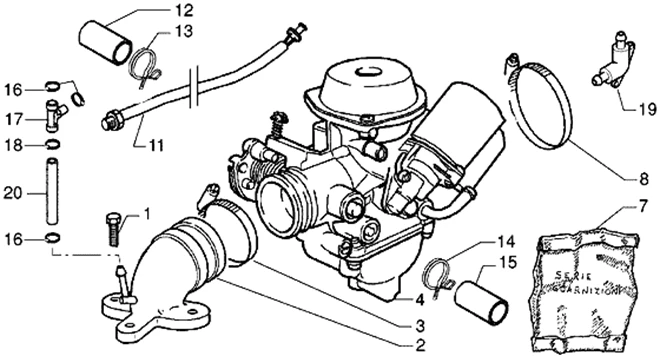

Moteur : T18 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/171/DNA_125_T18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
1 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 3 |
||||||
1 |
826822 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
1 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/6/img/66666.jpg)
2 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 125 BEVERLY, X9, HEXAGON/APRILIA 125-250 ATLANTIC 2003>2006/GILERA 125 RUNNER 4 STROKE -484748 More informationQuantity required : 1 |
||||||
|
2 |
826821 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
3 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/7/img/68627.jpg)
3 |
826843 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/1/img/73141.jpg)
4 |
CARBURETTOR "PIAGGIO GENUINE PART" 125 BEVERLY, X9, SUPER HEXAGON/APRILIA 125-250 ATLANTIC, SPORT-CITY, SCARABEO/GILERA 125 RUNNER, DNA -CM128204- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/6/img/68626.jpg)
4 |
826839 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/9/5/img/73095.jpg)
5 |
CARB AIR SCREW "PIAGGIO GENUINE PARTS" COMMUN A LA GAMME 125 CC 1998>2004 -CM106402- More informationQuantity required : 1 |
||||||
|
5 |
Manchon |
||||||
|
6 |
CM129802 - DISPOSITIF WALBRO More informationQuantity required : 1 |
||||||
|
6 |
Arrªt |
||||||
|
7 |
494921 - JEU DE JOINTS More informationQuantity required : 1 |
||||||
|
7 |
Vis |
||||||
|
7 |
CM109808 - CUVETTE More informationQuantity required : 1 |
||||||
|
8 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
|
8 |
CM109808 - CUVETTE More informationQuantity required : 1 |
||||||
|
9 |
CM140501 - MEMBRANE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/8/img/68618.jpg)
10 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 -826812- More informationQuantity required : 1 |
||||||
|
10 |
Rondelle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/0/img/68860.jpg)
11 |
CARB RESISTOR MODULE "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, VESPA-S, 125 X8, LIBERTY -82961R- More informationQuantity required : 1 |
||||||
|
11 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/0/img/69200.jpg)
12 |
AIR INTAKE "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125-250 CC -841695 More informationQuantity required : 1 |
||||||
|
12 |
826770 - VIS More informationQuantity required : 4 |
||||||
|
12 |
826826 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
13 |
CM002916 - SERRE CABLE (15MM) More informationQuantity required : 1 |
||||||
|
13 |
CUVETTE |
||||||
|
13 |
Ressort |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
14 |
CM002907 - COLLIER More informationQuantity required : 1 |
||||||
|
14 |
Goupille |
||||||
|
14 |
CM109701 - TIGE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/0/img/66450.jpg)
15 |
BI-PASS PIPE - FOR CARB HEATING "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 125-250CC -434381- More informationQuantity required : 1 |
||||||
|
15 |
826786 - POINTEAU ESSENCE More informationQuantity required : 1 |
||||||
|
15 |
Vis |
||||||
|
16 |
826824 - VIS More informationQuantity required : 1 |
||||||
|
17 |
CM105302 - GICLEUR More informationQuantity required : 1 |
||||||
|
17 |
826825 - RESSORT More informationQuantity required : 1 |
||||||
|
18 |
CM105409 - GIGLER MAXI 110/112 More informationQuantity required : 1 |
||||||
|
19 |
828742 - RECHAFFEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/0/img/73150.jpg)
21 |
SLIDE FOR WALBRO CARB "PIAGGIO GENUINE PART" 125 X9, BEVERLY, X8, VESPA GRANTURIMO 1998>2005/GILERA 125 DNA, RUNNER 1998>2005/APRILIA 125-250 ATLANTIC, SCARABEO, 125 SPORT-CITY -CM129701- More informationQuantity required : 1 |
||||||
|
22 |
CM106504 - GOUPILLE More informationQuantity required : 1 |
||||||
|
24 |
Pointeau con. |
||||||
|
25 |
Ressort |
||||||
|
26 |
Rondelle d'ar |
||||||
|
27 |
RESSORT |
||||||
|
28 |
438036 - BOUGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/4/img/68614.jpg)
29 |
SCREW - FOR CARB COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -826780- More informationQuantity required : 1 |
