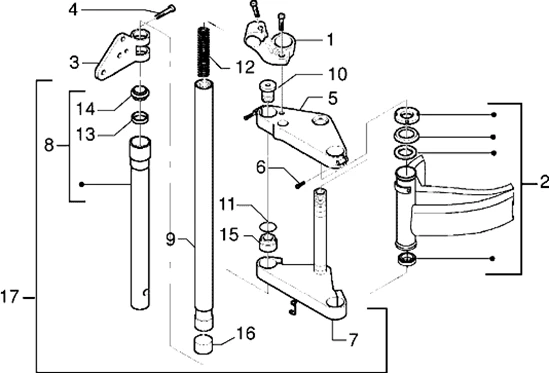

Suspensions-roues : T31 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/171/DNA_125_T31.PNG)
1 |
970000 - SUPPORT More informationQuantity required : 1 |
||||||
|
1 |
970001 - SUPPORT More informationQuantity required : 1 |
||||||
|
2 |
GROUPE SIEGE GUIDON |
||||||
|
3 |
564928 - SUPPORT More informationQuantity required : 1 |
||||||
|
3 |
564929 - SUPPORT More informationQuantity required : 1 |
||||||
|
4 |
970273 - VIS More informationQuantity required : 2 |
||||||
|
5 |
647982 - FOURCHE DNA 50/125/180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
6 |
SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150- More informationQuantity required : 2 |
||||||
|
7 |
T-DE FOURCHE DNA |
||||||
|
8 |
647982 - FOURCHE DNA 50/125/180 More informationQuantity required : 1 |
||||||
|
9 |
647982 - FOURCHE DNA 50/125/180 More informationQuantity required : 2 |
||||||
|
9 |
tube fourche |
||||||
|
10 |
TAMPON CANON DE FOURCHE DNA |
||||||
|
11 |
Joint torique |
||||||
|
12 |
RESSORT CANON DE FOURCHE DNA |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/5/0/img/82350.jpg)
13 |
FORK OIL SEAL "PIAGGIO GENUINE PART" GILERA 50 DNA, 125 RUNNER FX, VX/PIAGGIO 125-250 BEVERLY -598190- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/5/1/img/82351.jpg)
14 |
598191 - JOINT More informationQuantity required : 2 |
||||||
|
15 |
497057 - ENTRETOISE DNA More informationQuantity required : 2 |
||||||
|
16 |
601138 - SILENBLOC More informationQuantity required : 2 |
||||||
|
17 |
647982 - FOURCHE DNA 50/125/180 More informationQuantity required : 1 |
