Vehicle Exploded View - GILERA DNA 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

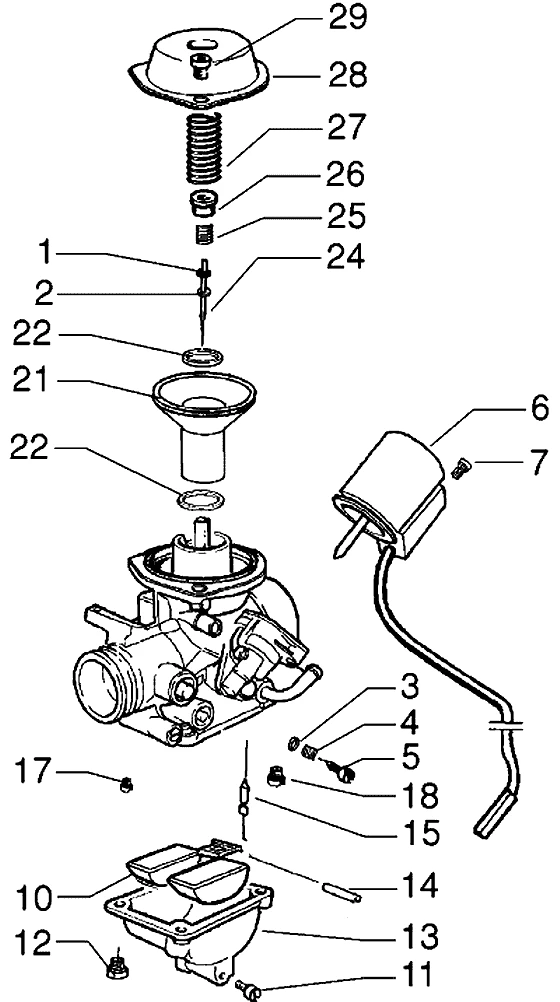

Moteur : T19 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/171/DNA_125-079.png)
1 |
826822 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
2 |
826821 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/7/img/68627.jpg)
3 |
826843 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/6/img/68626.jpg)
4 |
826839 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/9/5/img/73095.jpg)
5 |
CARB AIR SCREW "PIAGGIO GENUINE PARTS" COMMUN A LA GAMME 125 CC 1998>2004 -CM106402- More informationQuantity required : 1 |
||||||
|
6 |
CM129802 - DISPOSITIF WALBRO More informationQuantity required : 1 |
||||||
|
7 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/8/img/68618.jpg)
10 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 -826812- More informationQuantity required : 1 |
||||||
|
11 |
CM115201 - VIS More informationQuantity required : 1 |
||||||
|
12 |
826770 - VIS More informationQuantity required : 4 |
||||||
|
13 |
CUVETTE |
||||||
|
14 |
Goupille |
||||||
|
15 |
826786 - POINTEAU ESSENCE More informationQuantity required : 1 |
||||||
|
17 |
CM105302 - GICLEUR More informationQuantity required : 1 |
||||||
|
18 |
CM105409 - GIGLER MAXI 110/112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/0/img/73150.jpg)
21 |
SLIDE FOR WALBRO CARB "PIAGGIO GENUINE PART" 125 X9, BEVERLY, X8, VESPA GRANTURIMO 1998>2005/GILERA 125 DNA, RUNNER 1998>2005/APRILIA 125-250 ATLANTIC, SCARABEO, 125 SPORT-CITY -CM129701- More informationQuantity required : 1 |
||||||
|
22 |
CM106504 - GOUPILLE More informationQuantity required : 1 |
||||||
|
24 |
Pointeau con. |
||||||
|
25 |
Ressort |
||||||
|
26 |
Rondelle d'ar |
||||||
|
27 |
RESSORT |
||||||
|
28 |
438036 - BOUGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/4/img/68614.jpg)
29 |
SCREW - FOR CARB COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -826780- More informationQuantity required : 1 |
