Vehicle Exploded View - GILERA EAGLET 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

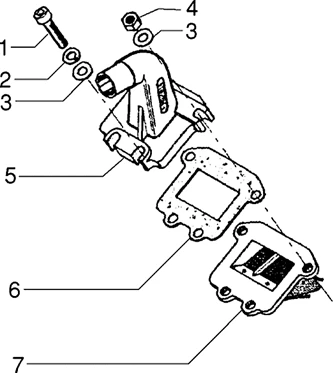

Moteur : T14 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/673/Eaglet_1998-2005_T14.PNG)
1 |
CARBURATEUR EAGLET |
||||||
|
1 |
CARBURATEUR EGLEAT EX 951538 |
||||||
|
2 |
SERIE DE JOINTS CARB |
||||||
|
3 |
VOLET DE GAZ |
||||||
|
3 |
813183 - VOLET DE GAZ More informationQuantity required : 1 |
||||||
|
4 |
CUVE |
||||||
|
5 |
813173 - FLOTTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/7/img/65997.jpg)
6 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" 50 CIAO/GILERA 50 GSM, EAGLET/APRILIA 50 CLASSIC, MX -247653- More informationQuantity required : 1 |
||||||
|
7 |
083900 - GICLEUR More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/9/img/65689.jpg)
8 |
FUEL FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50-125 MOTO APRILIA -099315 More informationQuantity required : 1 |
||||||
|
9 |
SUPPORT CARBU 50 RK |
||||||
|
10 |
ENTRETOISE |
