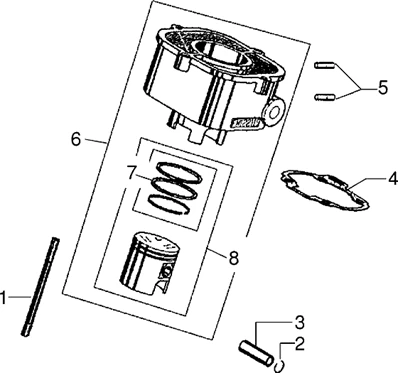

Moteur : T4 CULASSE-CYLINDRE-PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/673/Eaglet_1998-2005_T4.PNG)
1 |
319437 - RONDELLE More informationQuantity required : 4 |
||||||
|
2 |
ECROU DE GOUJON |
||||||
|
3 |
CENTRALE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
4 |
063435 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/2/img/66522.jpg)
5 |
SPARK PLUG CHAMPION P2M "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 1989>2005 -438065 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/1/img/66631.jpg)
6 |
THERMOSTAT "PIAGGIO GENUINE PART" 50 NRG, ZIP L.C. /GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR L.C. -483395 More informationQuantity required : 1 |
||||||
|
7 |
4321764 - CULASSE EAGLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/1/5/img/93615.jpg)
8 |
942134 - JOINT O-RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/0/img/66370.jpg)
9 |
BRAKE DRAIN SCREW -430045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/4/1/img/93641.jpg)
10 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" GILERA 50 GSM, H@K, EAGLET 1995>1999 -942857 More informationQuantity required : 1 |
||||||
|
11 |
942636 - GOUJON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/4/3/img/93643.jpg)
12 |
942859 - JOINT D'EMBASE 0,3 More informationQuantity required : 1 |
||||||
|
12 |
942860 - JOINT 0,4 More informationQuantity required : 1 |
||||||
|
12 |
JOINT 0,5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/4/5/img/93645.jpg)
12 |
942862 - JOINT 0,6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/3/img/65983.jpg)
13 |
STOP RING FOR PISTON "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 STROKE -239455 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/2/img/65982.jpg)
14 |
PISTON PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC -239404 More informationQuantity required : 1 |
||||||
|
15 |
942130 - SEGMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/9/4/img/78594.jpg)
16 |
PISTON (GILARDINI TOP ENGINE) "PIAGGIO GENUINE PART" GILERA GSM, H@K, EAGLET, SURFER -4332984001- More informationQuantity required : 1 |
||||||
|
16 |
4332984002 - GROUPE PISTON 1ER C More informationQuantity required : 1 |
||||||
|
16 |
4332984003 - PISTON CPL More informationQuantity required : 1 |
||||||
|
16 |
4332984004 - PISTON More informationQuantity required : 1 |
||||||
|
17 |
GROUPE CYLINDRE CPLT |
