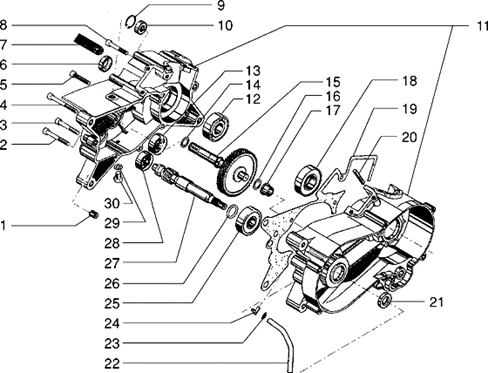

Moteur : T2 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/673/Eaglet_1998-2005_T2.PNG)
1 |
JOINT DE CARTER |
||||||
|
2 |
ECROU DE GOUJON |
||||||
|
3 |
319437 - RONDELLE More informationQuantity required : 4 |
||||||
|
4 |
COLLIER |
||||||
|
5 |
TUYAU RENIFLARD |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
6 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
432474 - GROUPE LAMELLES More informationQuantity required : 1 |
||||||
|
9 |
Raccord carb. |
||||||
|
9 |
Raccord |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
10 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/0/img/65440.jpg)
10 |
018553 - VIS More informationQuantity required : 4 |
||||||
|
10 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 2 |
||||||
|
11 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
12 |
013777 - RONDELLE S01377700 More informationQuantity required : 4 |
||||||
|
13 |
RONDELLE |
||||||
|
14 |
VIS |
||||||
|
15 |
|
||||||
|
16 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
17 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
18 |
031056 - VIS More informationQuantity required : 1 |
||||||
|
19 |
CARTER COMPLET |
||||||
|
20 |
JOINT |
||||||
|
21 |
GOUJON |
||||||
|
22 |
PIVOT |
||||||
|
23 |
RACCORD |
||||||
|
24 |
TUYAU BY-PASS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
25 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901 More informationQuantity required : 4 |
||||||
|
26 |
433880 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/4/4/img/112144.jpg)
27 |
ROLLER BEARING FOR STEERING ROD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -167016- More informationQuantity required : 1 |
||||||
|
28 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
|
28 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
