Vehicle Exploded View - GILERA GP 800 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

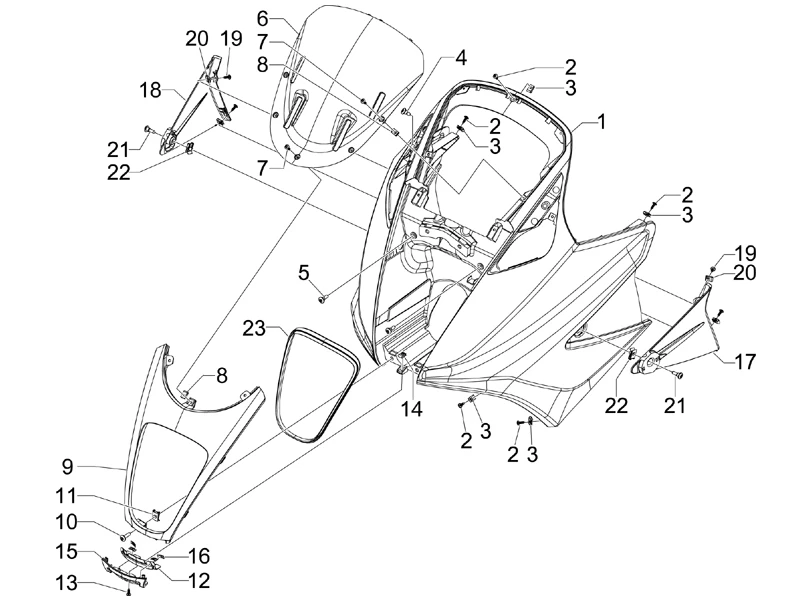

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/174/GP_800_2007-2008-113.png)
1 |
653127 - TABLIER AV BRUT More informationQuantity required : 1 |
|||||||||
|
1 |
65312700BR - TABLIER AV More informationQuantity required : 1 |
|||||||||
|
1 |
65312700EV - TABLIER AV More informationQuantity required : 1 |
|||||||||
|
1 |
FRONT SHIELD "PIAGGIO GENUINE PART" GILERA GP 800 BLACK 79/A -65312700ND- More informationQuantity required : 1 |
|||||||||
|
1 |
65312700RP - TABLIER AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 9 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604- More informationQuantity required : 11 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
3 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 11 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
4 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201- More informationQuantity required : 2 |
|||||||||
|
6 |
653129000C - COUVRE CHASSIS More informationQuantity required : 1 |
|||||||||
|
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604- More informationQuantity required : 5 |
|||||||||
|
8 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 5 |
|||||||||
|
9 |
653128 - ENCADREMENT More informationQuantity required : 1 |
|||||||||
|
9 |
65312800BR - ENCADREMENT More informationQuantity required : 1 |
|||||||||
|
9 |
65312800EV - ENCADREMENT More informationQuantity required : 1 |
|||||||||
|
9 |
65312800ND - ENCADREMENT More informationQuantity required : 1 |
|||||||||
|
9 |
65312800RP - ENCADREMENT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
10 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/8/img/73368.jpg)
10 |
CM179303 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
|||||||||
|
12 |
653130 - GRILLE AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/5/8/4/img/87584.jpg)
12 |
65313000BR - GRILLE AV More informationQuantity required : 1 |
|||||||||
|
12 |
65313000EV - GRILLE AV More informationQuantity required : 1 |
|||||||||
|
12 |
65313000ND - GRILLE AV More informationQuantity required : 1 |
|||||||||
|
12 |
65313000RP - GRILLE AV More informationQuantity required : 1 |
|||||||||
|
13 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 1 |
|||||||||
|
13 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604- More informationQuantity required : 1 |
|||||||||
|
14 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
|||||||||
|
15 |
FRONT GRID "PIAGGIO GENUINE PART" GILERA 800 GP -654120- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/6/img/63846.jpg)
16 |
008108 - PLAQUE More informationQuantity required : 4 |
|||||||||
|
17 |
LEFT DEFLECTOR "PIAGGIO GENUINE PART" GILERA 800 GP -6564250090- More informationQuantity required : 1 |
|||||||||
|
17 |
FRONT LEFT BAFFLE "PIAGGIO GENUINE PART" GILERA GP 800 -656425- More informationQuantity required : 1 |
|||||||||
|
18 |
6564260090 - DEFLECTEUR DRO. More informationQuantity required : 1 |
|||||||||
|
18 |
6564260090 - DEFLECTEUR DRO. More informationQuantity required : 1 |
|||||||||
|
19 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
|||||||||
|
20 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
|||||||||
|
21 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
|||||||||
|
21 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201- More informationQuantity required : 2 |
|||||||||
|
22 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
|||||||||
|
23 |
653143 - ENCADREMENT More informationQuantity required : 1 |
|||||||||
