Vehicle Exploded View - GILERA GP 800 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

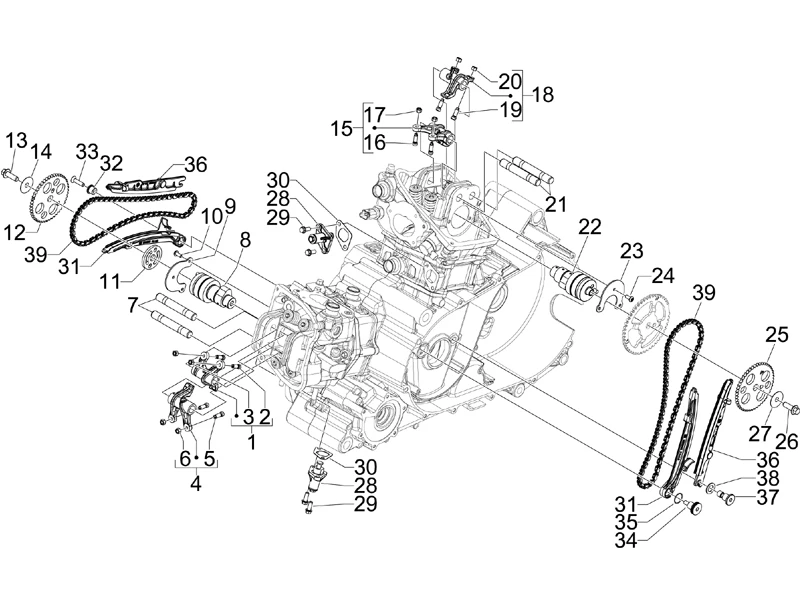

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/174/GP_800_2007-2008-053.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/5/img/68575.jpg)
1 |
INTAKE CPL ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260275- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/1/img/68731.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/7/img/66667.jpg)
3 |
484819 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/6/img/68576.jpg)
4 |
EXHAUST ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260285- More informationQuantity required : 1 |
||||||
|
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R- More informationQuantity required : 2 |
||||||
|
6 |
484819 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/2/img/68722.jpg)
7 |
ROCKER ARM SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 CC -827991 More informationQuantity required : 2 |
||||||
8 |
8787875 - AXE A CAMES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/0/img/70710.jpg)
9 |
879186 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/8/img/72648.jpg)
10 |
SCREW - (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER + MOTORBIKE -B014598 More informationQuantity required : 3 |
||||||
|
11 |
843081 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
12 |
843079 - COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/7/img/65837.jpg)
13 |
1A000425 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/4/5/img/69345.jpg)
14 |
845316 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
INTAKE CPL ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260275- More informationQuantity required : 1 |
||||||
|
16 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R- More informationQuantity required : 2 |
||||||
|
17 |
484819 - ECROU More informationQuantity required : 2 |
||||||
|
18 |
EXHAUST ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260285- More informationQuantity required : 1 |
||||||
|
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R- More informationQuantity required : 2 |
||||||
|
20 |
484819 - ECROU More informationQuantity required : 2 |
||||||
|
21 |
ROCKER ARM SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 CC -827991 More informationQuantity required : 2 |
||||||
|
22 |
8465765 - AXE A CAMES More informationQuantity required : 1 |
||||||
|
23 |
879186 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
24 |
SCREW - (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER + MOTORBIKE -B014598 More informationQuantity required : 3 |
||||||
|
25 |
843079 - COURONNE More informationQuantity required : 1 |
||||||
|
26 |
1A000425 - VIS More informationQuantity required : 1 |
||||||
|
27 |
845316 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
28 |
82650R - TENDEUR More informationQuantity required : 2 |
||||||
|
28 |
82650R - TENDEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
29 |
B016777 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
30 |
TIMING SYTEM TENSIONER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -847928 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/0/0/img/69000.jpg)
31 |
TIMING CHAIN SLIDING BLOCK (ADUSTABLE) "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -832293 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/6/5/img/68565.jpg)
32 |
825737 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/8/img/72728.jpg)
33 |
SCREW - M6X16 FOR BALANCE SHAFT OR OIL PUMP DRIVE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016797 More informationQuantity required : 1 |
||||||
|
34 |
B013444 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/0/img/66540.jpg)
35 |
478012 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/9/img/68999.jpg)
36 |
TIMING CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -832292 More informationQuantity required : 2 |
||||||
|
37 |
833053 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/4/img/65424.jpg)
38 |
GASKET "PIAGGIO GENUINE PART" APE, PORTEUR/APRILIA SRV/GILERA GP 800 -016661- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/7/img/68997.jpg)
39 |
TIMING CHAIN "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -832275 More informationQuantity required : 2 |
