Vehicle Exploded View - GILERA GP 800 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

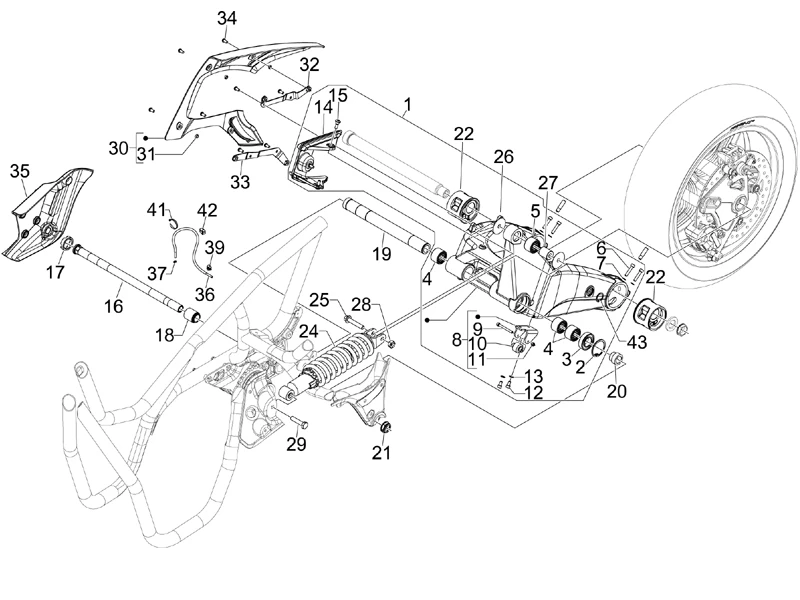

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/174/GP_800_2007-2008-206.png)
1 |
6683664 - BRAS DE LA SUSPENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
2 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/7/img/67327.jpg)
3 |
SWINGING ARM BEARING "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -597038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/0/2/img/67402.jpg)
4 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -599724- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/3/0/img/68130.jpg)
5 |
ROLLER BEARING FOR SWINGING ARM 25X32X24 "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, 125 RX, SX 2018> -650031 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/9/img/78329.jpg)
6 |
319538 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
7 |
006966 - RONDELLE S00696600 More informationQuantity required : 4 |
||||||
|
8 |
649987 - SUPPORT SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/6/img/66276.jpg)
9 |
SCREW - FOR BAR ENDS "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -294839- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/4/img/67284.jpg)
10 |
583342 - TAMPON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/1/img/65341.jpg)
11 |
012112 - ECROU S01211200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
12 |
122675 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
13 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
|
14 |
649672 - DOIGT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
15 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 3 |
||||||
|
16 |
648705 - PIVOT DE BRAS DE LA SUSPENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/5/8/img/68058.jpg)
17 |
NUT -FOR SUSPENSION ARM "PIAGGIO GENUINE PART" APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, 1000 TUONO, SRV 850/GILERA GP 800 -648707 More informationQuantity required : 1 |
||||||
|
18 |
649981 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/5/1/img/68051.jpg)
19 |
SPACER- FOR REAR SUSPENSON ARM "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -648468 More informationQuantity required : 1 |
||||||
|
20 |
649982 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
21 |
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763- More informationQuantity required : 1 |
||||||
|
21 |
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763- More informationQuantity required : 1 |
||||||
|
22 |
600334 - CAME More informationQuantity required : 2 |
||||||
|
24 |
648481 - AMORTISSEUR ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
25 |
SCREW - FOR REAR SHOCK ABSORBER"PIAGGIO GENUINE PARTS" FOR ALL THE RANGE -268158- More informationQuantity required : 1 |
||||||
|
26 |
650169 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
27 |
650058 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
28 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 1 |
||||||
|
29 |
967384 - VIS More informationQuantity required : 1 |
||||||
|
30 |
CHAIN PROTECTION "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA 850 SRV -649885- More informationQuantity required : 1 |
||||||
|
31 |
623162 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
32 |
649888 - PATTE More informationQuantity required : 1 |
||||||
|
33 |
649890 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
34 |
274369 - BOULON More informationQuantity required : 8 |
||||||
|
35 |
654487 - COUVERCLE More informationQuantity required : 1 |
||||||
|
36 |
CM001307 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/9/img/72889.jpg)
37 |
HOSE CLAMP "PIAGGIO GENUINE PART" APRILIA /PIAGGIO /GILERA /VESPA -CM002902- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
39 |
CM013201 - RESSORT More informationQuantity required : 2 |
||||||
|
41 |
273779 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
42 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/0/img/63820.jpg)
43 |
006624 - CIRCLIPS More informationQuantity required : 1 |
