Vehicle Exploded View - DERBI GP1 125 2ver E3 2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

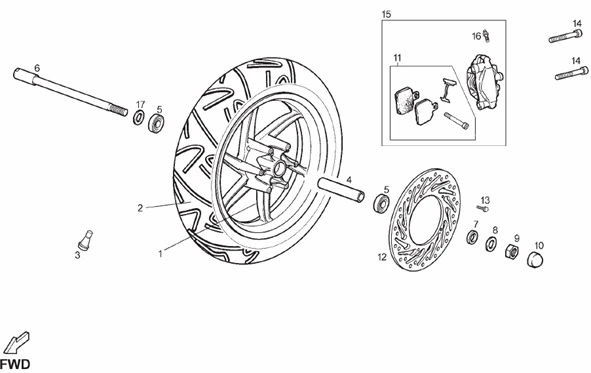

Vues éclatées : 11 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1147/GP1_125_2ver_E3_2007_(EMEA)_11.png)
1 |
863178 - CTO.LLANTA DLNTRA.GP1 125 LS More informationQuantity required : 1 |
||||||
|
2 |
00G01215111 - REIFEN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
3 |
270991 - VALVE More informationQuantity required : 1 |
||||||
|
4 |
959378 - ENTROISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
5 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 1 |
||||||
|
6 |
00G01203271 - EJE RUEDA DLNTRA.GP1 250CC 05 More informationQuantity required : 1 |
||||||
|
6 |
863181 - EJE RUEDA DLNTRA.GP1 125 LS More informationQuantity required : 1 |
||||||
|
7 |
865921 - CASQ.SEPARAD.RDA.DLNT.GP1 LS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
8 |
FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
9 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/2/5/img/64425.jpg)
10 |
FRONT WHEEL GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01201331 More informationQuantity required : 1 |
||||||
|
11 |
864580 - R-KIT PAST+COMPONT.FRENO DT.GP1 125 LS More informationQuantity required : 1 |
||||||
|
12 |
863180 - DISCO FRENO DLNT.245 GP1 125 LS More informationQuantity required : 1 |
||||||
|
13 |
AP8152060 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/6/img/63566.jpg)
14 |
00000004160 - VIS More informationQuantity required : 1 |
||||||
|
15 |
864579 - R-CTO.PINZA FRENO DLNT.GP1 125 LS More informationQuantity required : 1 |
||||||
|
16 |
00H04705121 - PURGEUR PINCE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
17 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
709037 - RONDELLE More informationQuantity required : 1 |
