Vehicle Exploded View - DERBI GP1 125 2ver E3 2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

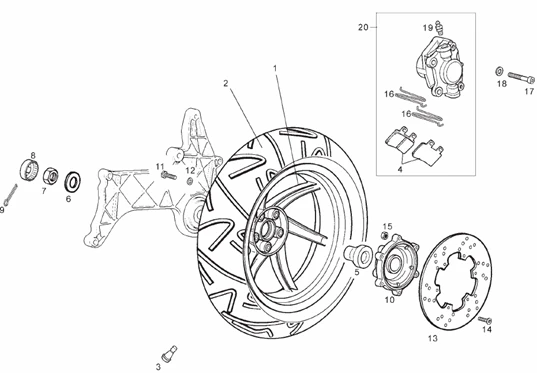

Vues éclatées : 12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1147/GP1_125_2ver_E3_2007_(EMEA)_12.png)
1 |
949357 - LLANTA TRAS.3.5X13 GP1 125 LS More informationQuantity required : 1 |
||||||
|
2 |
86105R - CUBRTA.TRAS.140/60X13" GP1 50CC OPEN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
3 |
270991 - VALVE More informationQuantity required : 1 |
||||||
|
4 |
00H01304931 - ENS. PLAQUETTE DE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/5/img/69555.jpg)
5 |
848039 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/6/img/67346.jpg)
6 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 CC -597528- More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
8 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
8 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/1/img/67361.jpg)
10 |
REAR DISC HUB "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 FLY 2012>2013/GILERA 125 RUNNER 2005> -598715 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/1/img/72731.jpg)
11 |
B016806 - VIS M8X40 More informationQuantity required : 1 |
||||||
|
12 |
00000033080 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/2/img/67082.jpg)
13 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 50 NRG, 125 LIBERTY, FLY, LIBERTY, 125-250-300 VESPA GTS/GILERA 50-125 RUNNER -56484R More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
15 |
219277 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/7/img/64467.jpg)
16 |
BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831- More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
18 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/3/4/img/64934.jpg)
19 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 GPR -00H04702121 More informationQuantity required : 1 |
||||||
|
20 |
864582 - R-CTO.PINZA FRENO TRAS.GP1 125 LS More informationQuantity required : 1 |
