Vehicle Exploded View - DERBI GP1 125 2ver E3 2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

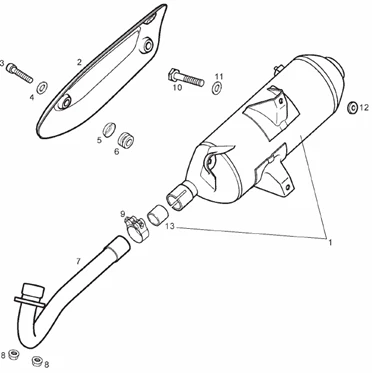

Vues éclatées : 13 TUYAU D’ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1147/GP1_125_2ver_E3_2007_(EMEA)_13.png)
1 |
874027 - SCTO.SORDINA GP1 125 LS E3 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/2/img/69232.jpg)
2 |
EXHAUST HEAT PROTECTION "PIAGGIO GENUINE PART" 125-250 MP3 2006>, X8 2004>, X9 2003>, X-EVO 2007>X7 2008>, BEVERLY 2005>/GILERA 250-300 NEXUS 2006> -842404- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
4 |
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/7/img/92917.jpg)
5 |
EXHAUST BUSHING/WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -834643- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
6 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665 More informationQuantity required : 1 |
||||||
|
7 |
00G03474601 - CTO.TUBO ESCAPE GP1 RACE 125CC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
8 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947- More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
11 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
12 |
863693 - CASQ.SEPAR.SORDINA GP1 125 LS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/6/img/68596.jpg)
13 |
GRAPHITE BUSHING FOR SILENCER "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVOGILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX -8263885- More informationQuantity required : 1 |
