Vehicle Exploded View - MOTO-GUZZI LE MANS 1000 1983-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

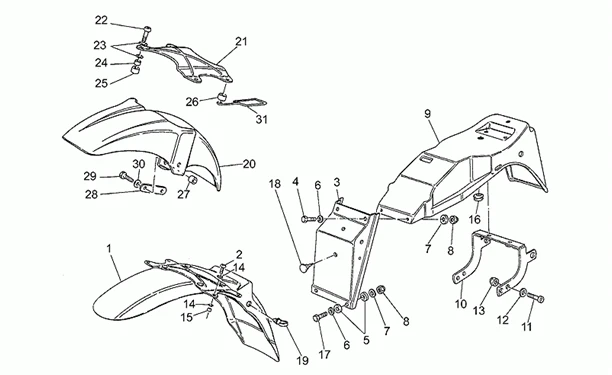

Chassis : 33.20 GARDE-BOUE AV./ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.20.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
GU98230816 - VIS More informationQuantity required : 4 |
||||||
|
3 |
PARE BOUE AR. |
||||||
|
4 |
GU98054325 - VIS More informationQuantity required : 1 |
||||||
|
5 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 8 |
||||||
|
6 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
||||||
|
7 |
GU95100118 - RONDELLE 6,2X18X1 More informationQuantity required : 3 |
||||||
|
8 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
9 |
|
||||||
|
10 |
SUPPORT GARD BOVE |
||||||
|
11 |
GU98622425 - VIS M8X25 More informationQuantity required : 4 |
||||||
|
12 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
13 |
GU92630508 - ECROU More informationQuantity required : 4 |
||||||
|
14 |
GU90706092 - JOINT TORIQUE More informationQuantity required : 8 |
||||||
|
15 |
GU28436460 - DOUILLE More informationQuantity required : 4 |
||||||
|
16 |
|
||||||
|
17 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
18 |
GU19705900 - TAMPON More informationQuantity required : 3 |
||||||
|
19 |
GU28659740 - OEILLET More informationQuantity required : 2 |
||||||
|
20 |
GARDE-BOUE AV. |
||||||
|
20 |
|
||||||
|
20 |
|
||||||
|
21 |
|
||||||
|
22 |
Vis |
||||||
|
23 |
GU90706092 - JOINT TORIQUE More informationQuantity required : 8 |
||||||
|
24 |
GU28436460 - DOUILLE More informationQuantity required : 4 |
||||||
|
25 |
GU91180823 - ENTRETOISE 8,5X17X13 More informationQuantity required : 2 |
||||||
|
26 |
ENTRETOISE |
||||||
|
27 |
|
||||||
|
28 |
|
||||||
|
29 |
GU98622425 - VIS M8X25 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
30 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
31 |
OEILLET |
