Vehicle Exploded View - MOTO-GUZZI LE MANS 1000 1983-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

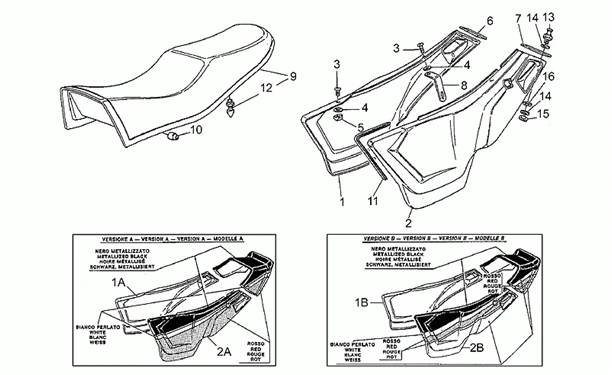

Chassis : 33.28 SELLE -FLANCS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.28.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
COTE |
||||||
|
2 |
COTE |
||||||
|
2 |
COTE |
||||||
|
2 |
COTE |
||||||
|
2 |
COTE |
||||||
|
2 |
COTE |
||||||
|
2 |
COTE |
||||||
|
3 |
GU98326014 - VIS More informationQuantity required : 4 |
||||||
|
4 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 8 |
||||||
|
5 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 2 |
||||||
|
6 |
RONDELLE DE CALAGE |
||||||
|
7 |
RONDELLE DE CALAGE |
||||||
|
8 |
|
||||||
|
9 |
Selle |
||||||
|
10 |
|
||||||
|
11 |
CAOUTCHOUC |
||||||
|
12 |
GU28462960 - AXE More informationQuantity required : 1 |
||||||
|
13 |
GU28478560 - PIVOT FLANCS More informationQuantity required : 4 |
||||||
|
14 |
GU95000205 - RONDELLE More informationQuantity required : 16 |
||||||
|
15 |
GU92602205 - ECROU More informationQuantity required : 4 |
||||||
|
16 |
|
